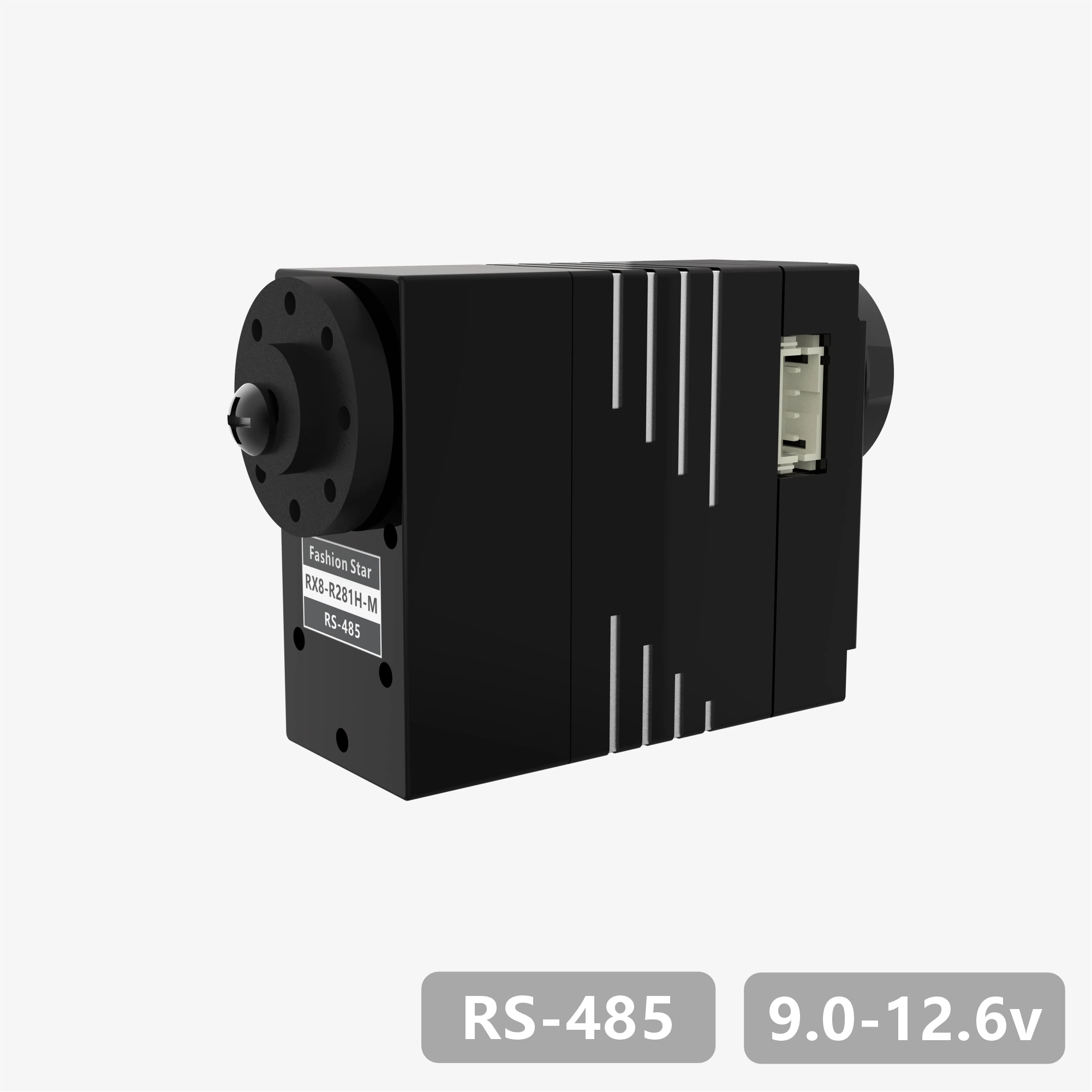

RS-485 Bus Servo · RX8-R281H-M
$148.70
On backorder — Contact us for lead timeA high-value 12V RS-485 servo delivering 28 kg·cm stall torque, multi-turn control, position feedback, and multiple built-in protections.
Essential Add-on
RS-485 Bus Servo · RX8-R281H-M
$148.70
485/USB Converter (UC-05)
$12.80
Overview
RS-485 Bus Communication
Brushless Motor & Smart Protection
Advanced Modes & Stop Behaviors
- Single-Turn: ±180° range for standard rotary joints
- Multi-Turn: ±368,640° (1,024turns) range, with multi-turn count saved after power-off
- Damping Mode: controlled resistance for smooth, compliant motion
- 3 Stop Modes: Free, Lock, and Damp for different holding/release needs
Rich Motion Commands & Profiles
Custom Home Position
RS-485 Ecosystem & Daisy-Chain Ready
Media Gallery
Specification
|
Item |
Basic Specifications |
|---|---|
|
Protocol Type |
RS-485 |
|
Input Voltage |
9.0 ~ 12.6V |
|
Motor Type |
Brushless |
|
Position Sensor |
12-bit Contactless Absolute Encoder (Magnetic) |
|
Effective Position Range |
±180° (single-turn) / ±368,640° (multi-turn) |
|
Resolution |
4,096 counts / 360° (0.088° per count) |
|
Processor |
32-bit MCU |
|
Baud Rate |
9,600 bps ~ 1 Mbps |
|
ID Range |
0 ~ 254 |
|
Gear Ratio |
173:1 |
|
Output Spline Specification |
Stainless Steel / ⌀6 mm / 25T |
|
Gear Material |
All Stainless Steel Construction |
|
Interface |
PH2.0 - 4Pin |
|
Case Material |
All Aluminum Alloy |
|
Dimensions |
40 x 20 x 46 mm |
|
Appearance |
Single-shaft |
|
Weight |
96 g |
|
Operating Temperature |
-10 ~ 60 °C |
|
Operating Mode |
Single-turn Angle | Multi-turn Angle | Damping Mode |
|
Item |
Characteristic Specifications |
|---|---|
|
Max Stall Torque |
2.74 N·m (28 kg·cm) |
|
Max Continuous Torque |
1.18 N·m (12 kg·cm) |
|
Rated Torque |
0.44 N·m (4.5 kg·cm) |
|
Rated Speed |
116 rpm (0.086 sec @ 60°) |
|
No Load Speed |
142 rpm (0.070 sec @ 60°) |
|
Peak Current |
5.5 A |
|
No Load Current |
＜300 mA |
|
Standby Current |
＜40 mA |
|
Axial Load |
20N |
|
Radial Load |
40N |
Performance Curves
SDK And Platforms
CAD Drawings
Documents
Certification
|
HS Code |
8501109990 |
|
ECCN Code |
EAR99 |
|
Country of Origin |
China |
|
Certifications |
CE, FCC, RoHS |
Part List
|
Item |
Qty. |
|---|---|
|
Servo |
1 |
|
8-Hole Main Horn |
1 |
|
PM M3*6mm Screw |
1 |
|
PM M2*4.5mm Screw |
8 |
|
PM M3*14mm Screw |
4 |
|
M3 Lock Nut |
4 |
|
Mounting Spacer |
2 |
|
200mm 3-pin Cable (PH2.0×2) |
1 |
| Protocol Type | RS-485 |
|---|---|
| Input Voltage | 9.0 ~ 12.6V |
| Motor Type | Brushless |
| Position Sensor | 12-bit Contactless Absolute Encoder (Magnetic) |
| Effective Position Range | ±180° (single-turn) / ±368, 640° (multi-turn) |
| Resolution | 4,096 counts / 360° (0.088° per count) |
| Processor | 32-bit MCU |
| Baud Rate | 9,600 bps ~ 1 Mbps |
| ID Range | 0 ~ 254 |
| Gear Ratio | 173:1 |
| Output Spline Specification | Stainless Steel / ⌀6 mm / 25T |
| Gear Material | All Stainless Steel Construction |
| Interface | PH2.0 – 4Pin |
| Case Material | All Aluminum Alloy |
| Dimensions | 40 x 20 x 48.2 mm |
| Appearance | Dual-shaft |
| Weight | 96 g |
| Operating Temperature | -10 ~ 60 °C |
| Operating Mode | Single-turn Angle | Multi-turn Angle | Damping Mode |
| Max Stall Torque | 2.74 N·m (28 kg·cm) |
| Max Continuous Torque | 1.18 N·m (12 kg·cm) |
| Rated Torque | 0.44 N·m (4.5 kg·cm) |
| Rated Speed | 116 rpm (0.086 sec @ 60°) |
| No Load Speed | 142 rpm (0.070 sec @ 60°) |
| Peak Current | 5.5 A |
| No Load Current | ＜300 mA |
| Standby Current | ＜40 mA |
| Axial Load | 20N |
| Radial Load | 40N |
Frequently Asked Questions About HX8-R28H-M RS-485 Servo
These FAQs explain how the HX8-R28H-M fits robotics, automation, education, and engineering projects, with details on protocol, power, torque, speed, documentation, and integration resources.
What power supply should I use with the HX8-R28H-M?
What single-turn and multi-turn position ranges does it support?
When should I choose this RS-485 bus servo instead of a PWM servo?
Can multiple HX8-R28H-M servos operate on the same RS-485 bus?
Where can I find the datasheet, CAD files, protocol, software and SDKs?
Engineering note: Always confirm power input, wiring, mechanical load, and software limits before testing the HX8-R28H-M in a finished robot or automation system.
