CAN/USB Adapter and Configuration Board (UC-06)
$29.00

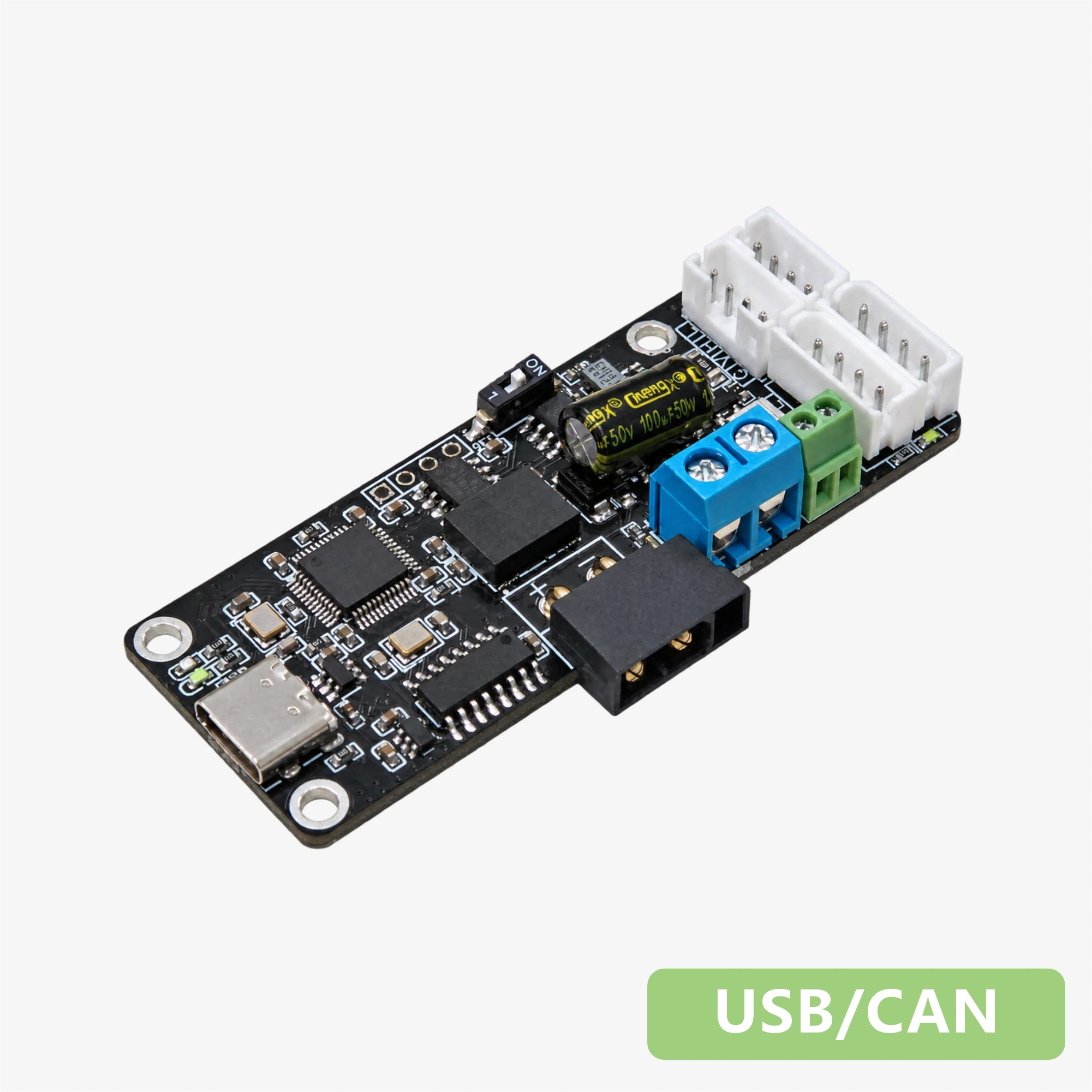

In stockUC-06 is a CAN/USB adapter and configuration board that connects CAN bus servos to a PC or other host platforms, with communication speeds up to 1 Mbps and 3 kV isolation.
Equipped with a Type-C data interface, power and signal indicators and a 120 Ω termination switch, it supports ID configuration, parameter setting and multiple connection options for bus servo commissioning.
Related Products
U-Shaped Body Bracket
$50.00
Main Horn (For 15kg Servos)
$50.00
Converter （PTC-32）
$22.60Overview
1 Mbps Communication Speed
Communication speeds up to 1 Mbps.
3 kV Electrical Isolation
Isolation voltage of 3 kV.
Type-C Interface with Status Indicators
Type-C data interface with power and signal indicators.
CAN Bus Servo Configuration
Supports ID configuration, parameter settings, and communication between CAN bus servos and PCs or other platforms.
Multiple Connections with Termination Switch
Multiple connection options with a 120 Ω termination switch.
Specification
|
Item |
Value |
|---|---|
|
Input voltage |
8.0–25.2 V |
|
Signal conversion |
USB to CAN |
|
Maximum communication speed |
1 Mbps |
|
Isolation voltage |
3 kV |
|
Maximum current capacity |
20 A |
|
Serial port outputs |
1 |
|
Data interface |
Type-C |
|
Operating temperature |
-10 to 60 °C |
|
Servo connectors |
PH2.0 × 2, 5264-4P × 2 |
|
Mounting holes |
M3.0 × 3 |
|
Indicators (USB power / Servo power / Communication) |
Red / Green / Blue |
|
Dimensions |
70.1 × 26.6 mm |
|
Weight |
14.3 g |

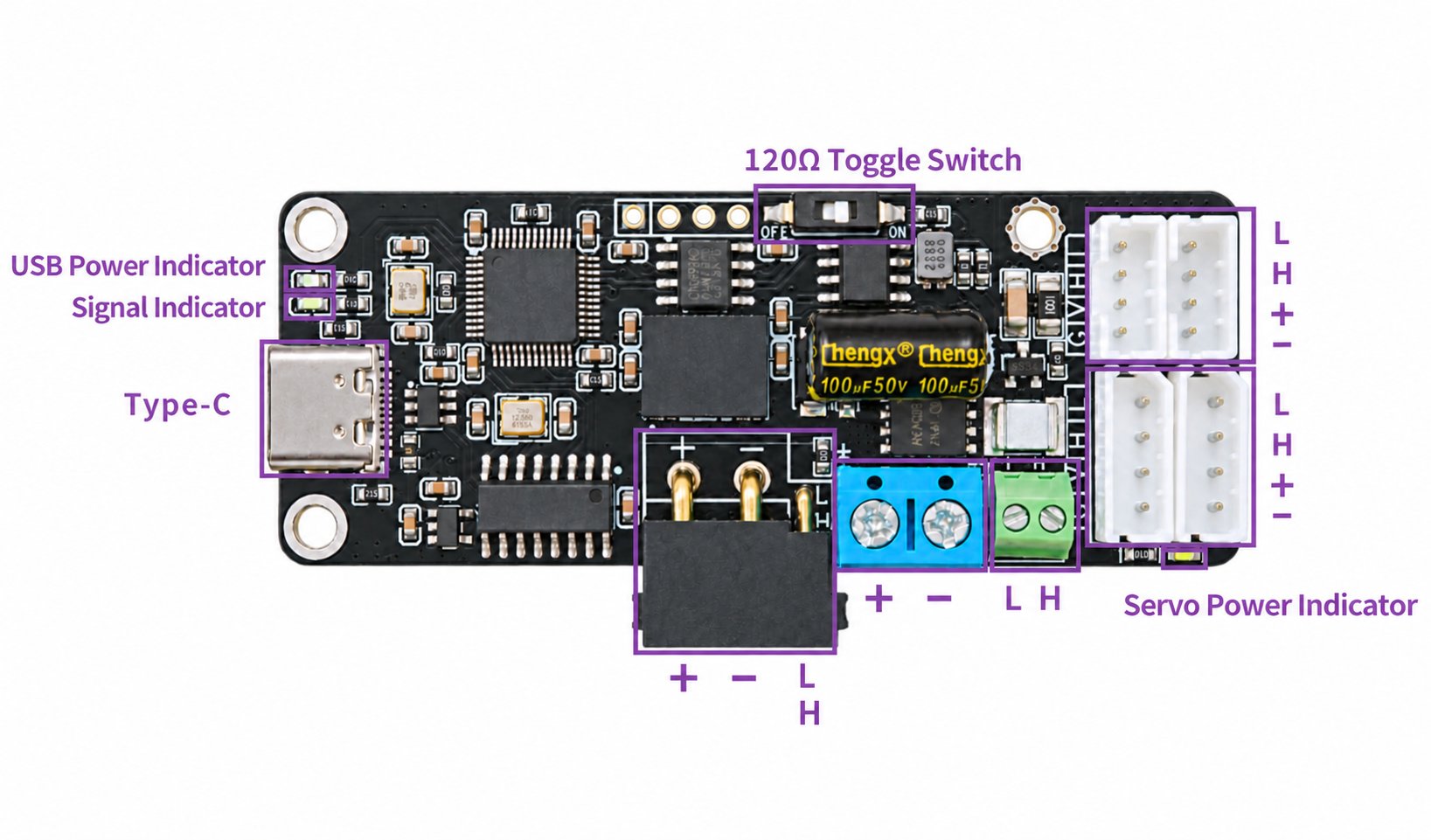

Interface Definition
|
Interface / Label |
Description |
|---|---|
|
Type-C |
USB data interface for connecting to a PC |
|
PH2.0 and 5264-4P servo connectors |
Pins labeled L, H, +, and − correspond to CANL, CANH, power positive, and power negative; see the diagram above for their positions |
|
XT30 (2+2) connector |
Provides power positive, power negative, CANL, and CANH connections; see the diagram above for their positions |
|
Power terminal block (+, −) |
External power input: + is positive and − is negative |
|
CAN terminal block (L, H) |
L is CANL and H is CANH |
|
120 Ω termination switch |
Switches the 120 Ω CAN bus termination resistor in or out |
|
USB power indicator |
Red |
|
Servo power indicator |
Green |
|
Communication indicator |
Blue; identified as the signal indicator in the diagram |
Schematic
| Input Voltage | 8.0 ~ 25.2V |
|---|---|
| Signal conversion | USB to CAN |
| Baud Rate | 1 Mbps |
| Isolation Voltage | 3 kV |
| Peak Current | 20A |
| UART output | 1 |
| Data interface | Type-C |
| Operating Temperature | -10 ~ 60 °C |
| Interface | PH2.0 × 2, 5264-4P × 2 |
| Mounting holes | M3.0 × 3 |
| Indicators | USB power (Red), Servo power (Green), Communication (Blue) |
| Dimensions(W×H) | 70.1×26.6mm |
| Weight | 14.3 g |
| Product Type | Adapter |
