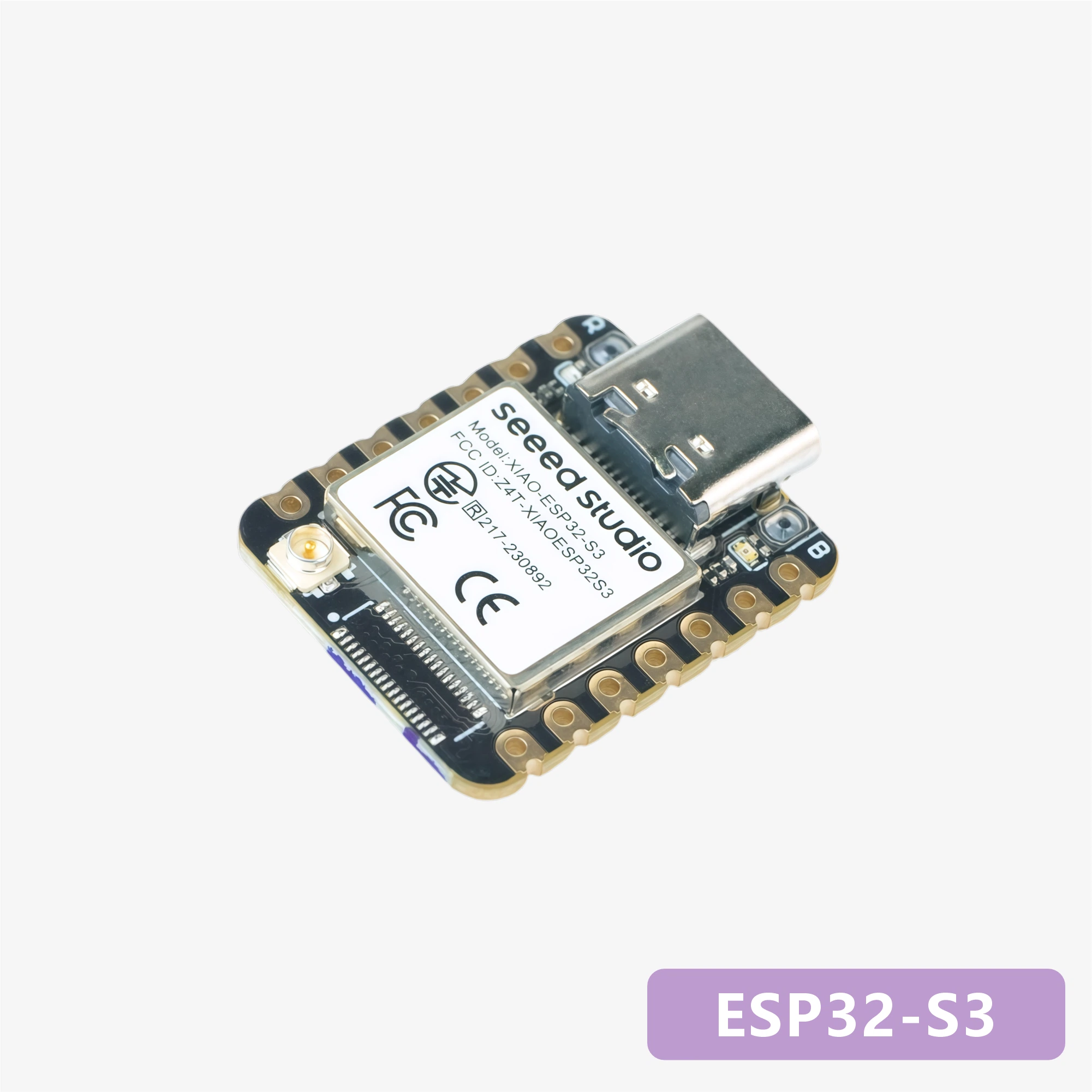

Seeed Studio XIAO Development Board · ESP32-S3
$12.50
In stockSeeed Studio XIAO ESP32S3 leverages 240MHz Xtensa 32-bit LX7 dual-core processor, supporting both WiFi and BLE 5.0 wireless connectivities and a 2.4GHz Rod antenna. Ideal for the Internet of Things, Smart Homes, Wireless wearable devices, Robotics, etc.
Related Products
Overview
ESP32-S3 Dual-Core Processor
Based on the Espressif ESP32-S3R8 chip, with a dual-core Xtensa LX7 processor and a maximum frequency of 240MHz.
Wireless Connectivity
Onboard 2.4GHz Wi-Fi, Bluetooth 5.0, and Bluetooth Mesh.
Integrated Memory
Integrated 8MB Flash and 8MB PSRAM.
Lithium Battery Management
Onboard lithium battery charging management circuit, supporting 3.7V lithium battery power input.
Rich GPIO and Interfaces
Provides 11 digital GPIO pins, 9 ADC channels, 1 UART port, 1 IIC port, and 1 SPI port.
USB Type-C
Onboard USB Type-C port for program download and power input.
Onboard User Controls
Onboard power indicator, user-defined LED, reset button, and Boot button.
Compact Embedded Design
Compact board size, suitable for robots, wearable devices, IoT terminals, and embedded control applications.
Specification
|
Item |
Value |
|---|---|
|
Main Controller Chip |
ESP32-S3R8 |
|
Processor Architecture |
Dual-core Xtensa LX7, up to 240MHz |
|
Wireless Connectivity |
2.4GHz Wi-Fi / Bluetooth 5.0 / Bluetooth Mesh |
|
On-chip SRAM |
512KB |
|
Onboard Flash |
8MB |
|
Onboard PSRAM |
8MB |
|
Input Voltage |
5V DC (Type-C) / 3.7V lithium battery |
|
Battery Charging |
Supports lithium battery charging management |
|
GPIO |
11 digital GPIO pins (PWM supported) |
|
ADC |
9 channels |
|
Communication Interfaces |
UART × 1 / IIC × 1 / SPI × 1 |
|
User Interfaces |
Reset button × 1 / Boot button × 1 / User LED × 1 / Charging LED × 1 |
|
Operating Temperature |
-20 to 65 °C |
|
Dimensions |
21 × 17.8 mm |
|
Mounting Method |
SMD castellated-hole package + onboard chip antenna |
|
Typical Power Consumption |
About 100mA with Wi-Fi active, about 85mA with BLE active, about 14μA in deep sleep |
Interface Definition
CAD Drawing
Schematic
| Signal conversion | Half-duplex to full-duplex conversion |
|---|---|
| TTL level | 3.3v, 5.0v |
| Peak Current | 20A |
| UART output | 1 |
| Data interface | Type-C |
| Operating Temperature | -10 ~ 60 °C |
| Protection features | Reverse polarity protection |
| Interface | PH2.0 x 2 |
| Mounting holes | M2.0 × 3 |
| Power LED | Red |
| Dimensions(W×H) | 36×24mm |
| Weight | 5g |
| Product Type | Converter |
