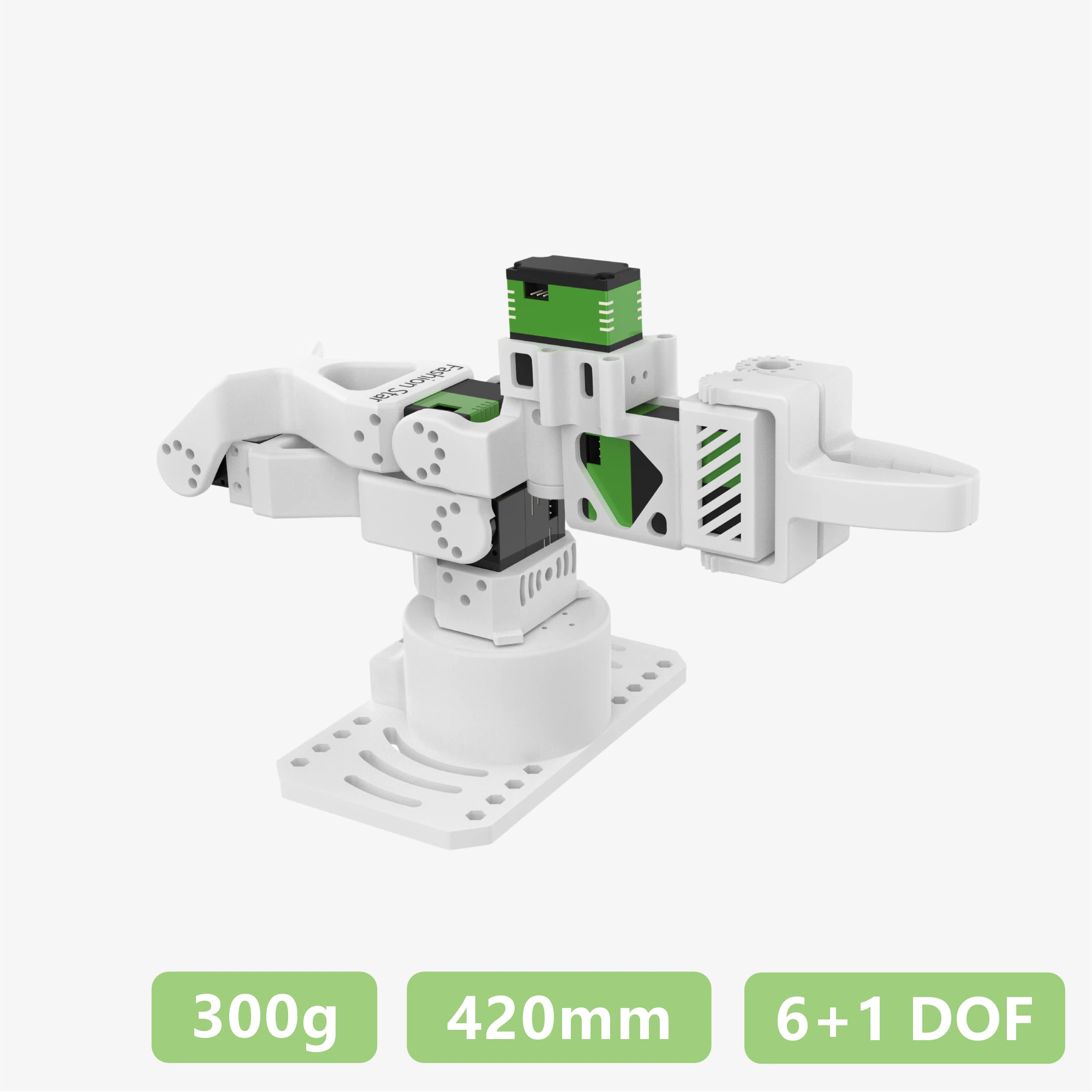

Star Arm 102-FL Follower Arm
Price range: $315.00 through $339.00
A 6+1 DoF arm that follows a leader arm, carrying out recorded trajectories or commands sent from control software — available fully assembled or as a DIY kit.
High-torque RA8 and brushless RX8 servos handle a 500g payload, and the standard end-effector interface takes both rigid and flexible grippers.
Pieper-compliant geometry with three wrist axes meeting at one point supports closed-form inverse kinematics, and it runs on LeRobot, ROS 2, MoveIt 2 and Gazebo. It pairs with the Star Arm 102-HD or 102-LD leader.
Related Products
Power Supply Notice
Overview
6+1 DoF Follower Robot Arm for Task Execution
500g Payload with High-Torque Robot Servos
Pieper-Compliant Design for Inverse Kinematics
ROS 2, MoveIt 2 and Gazebo Support
LeRobot Support for Imitation Learning
Interchangeable Rigid and Flexible Grippers
Assembled or DIY Kit
Media Gallery
Development Ecosystem
LeRobot Ecosystem Integration
ROS 2 Support
Python SDK
Web-Based Control Interface
Applications
Classroom Robotics
Hands-on robotic arm demos for university courses — students learn kinematics, control theory, and motion planning with real hardware. The Star Arm 102-FL DIY kit lets students assemble the execution platform itself, learning how joints and payload limits translate to real motion.
AI Trajectory Collection
Batch-collect high-quality motion data for imitation learning and reinforcement learning — 12-bit encoders deliver clean, jitter-free trajectories. As the follower, the kit records and replays trajectories collected by a leader arm — assembling it clarifies how actuator selection affects accuracy.
Teleoperation Retrofit
Upgrade existing lab robotic arms with a low-cost leader-follower system — no full hardware replacement needed. Add the FL follower kit to an existing leader to build a complete leader-follower system without replacing hardware.
Maker & STEM Demos
Interactive robot demos for maker spaces, science fairs, and public outreach — engaging, safe, and easy to set up. The from-parts build works as a workshop activity, with participants assembling the follower before running demos.
Algorithm Prototyping
Single-operator teleoperation for rapid validation of grasping, path planning, and AI robotics algorithms. Validate grasping and sorting algorithms on the FL follower kit before scaling to production setups.
Part List
|
102-FL |
Qty. |
|---|---|
|
3D-printed structural parts (DIY Kit only) |
1 |
|
Servos (DIY Kit only) |
7 |
|
Screws |
1 |
|
Threadlocker |
1 |
|
Woodworking Clamps |
2 |
|
Spare UC-01 PCB |
1 |
|
DC Power Adapter Cable |
1 |
|
200mm Servo Extension Cable |
1 |
|
USB-A to USB-C Cable |
1 |
|
Mouse Pad |
1 |
Specification
|
Item |
Star Arm 102-FL |
|---|---|
|
Reach |
420mm |
|
DOF |
6+1 |
|
Repeatability |
±0.5mm |
|
Working Payload |
500g |
|
Joint Range |
Joint 1: ±110° | Joint 2: 0°~180° | Joint 3: 0°~270° | Joint 4: ±90° | Joint 5: ±65° | Joint 6: ±150° | Gripper: 0~90° |
|
Servos |
RA8-U35H-M × 4 (Joints #1, #4, #7 & Gripper Joint) | RX8-U50H-M × 1 (Joint #2-3) | RA8-U27H-M-C005 × 2 (Joints #5) | RA8-U35H-M-C047 (Joints #6) |
|
Protocol Type |
UART |
|
Communication Hub |
UC-01 |
|
Power Supply |
12V 10A / XT30 |
|
Weight |
791g |
|
Operating Temperature |
0-40℃ |
|
Works with ROS 2 |
✓ |
|
Works with LeRobot |
✓ |
|
Works with MoveIt |
✓ |
|
Works with Gazebo |
✓ |
CAD Drawings
Documents
Certification
|
HS Code |
9023009000 |
|
ECCN Code |
EAR99 |
|
Country of Origin |
China |
|
Certifications |
CE, FCC, RoHS |
| Product Series | Star Arm 102 |
|---|---|
| Reach | 420mm |
| DOF | 6+1 |
| Repeatability | ±0.5mm |
| Working Payload | 500g |
| Joint Range | Joint 1: ±110° | Joint 2: 0°~180° | Joint 3: 0°~270° | Joint 4: ±90° | Joint 5: ±65° | Joint 6: ±150° | Gripper: 0~90° |
| Servos | RA8-U35H-M × 4 (Joints #1, #4, #7 & Gripper Joint) | RX8-U50H-M × 1 (Joint #2-3) | RA8-U27H-M-C005 × 2 (Joints #5) | RA8-U35H-M-C047 (Joints #6) |
| Protocol Type | UART |
| Communication Hub | UC-01 |
| Power Supply | 12V 10A / XT30 |
| Weight | 791g |
| Operating Temperature | 0-40℃ |
| Works with ROS 2 | ✓ |
| Works with Lerobot | ✓ |
| Works with MoveIt | ✓ |
| Works with Gazebo | ✓ |
