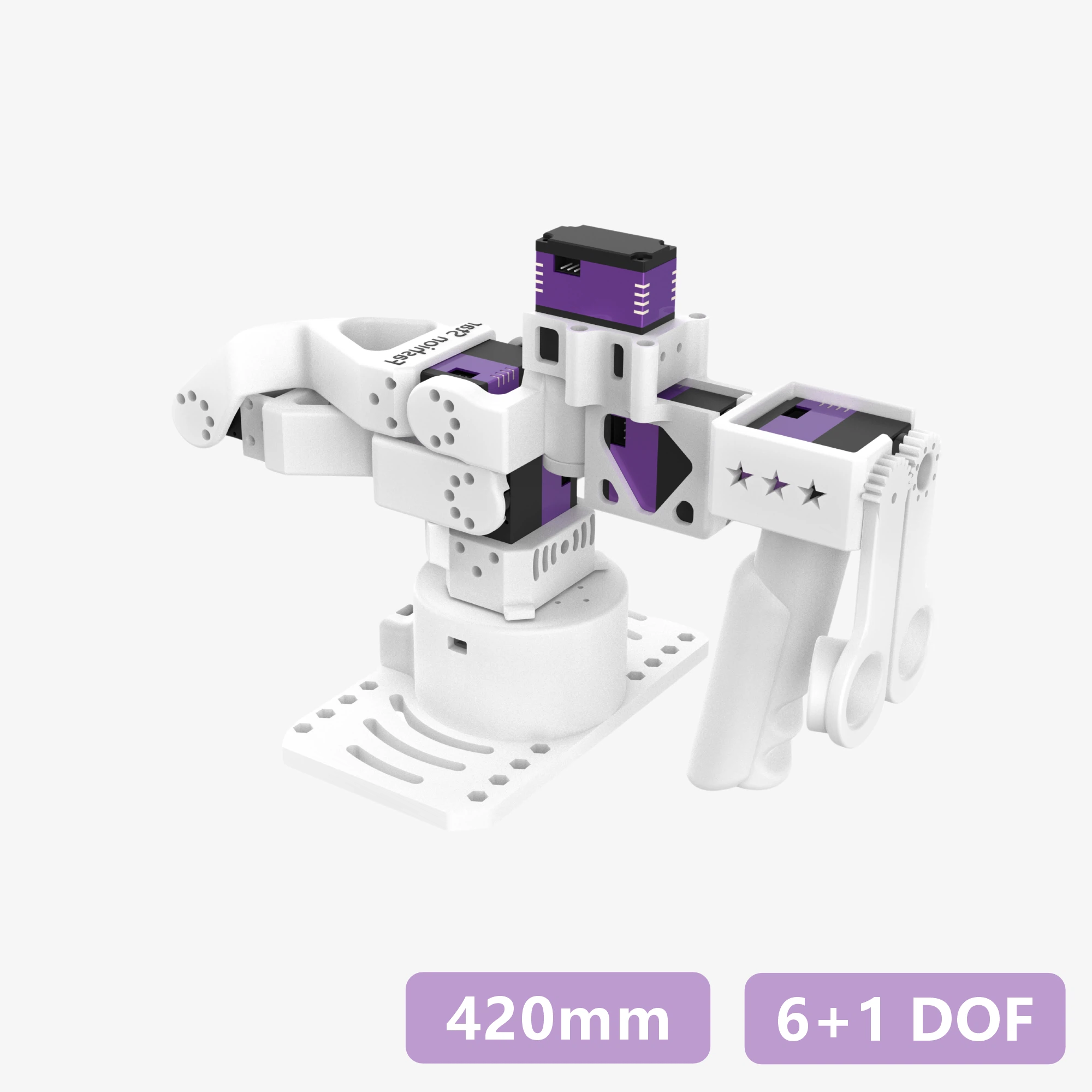

Star Arm 102-HD Leader Arm
Price range: $259.00 through $280.00
A pose-holding leader arm for teleoperation, teaching and extended data collection — available fully assembled or as a DIY kit.
High-torque coreless bus servos hold any selected pose without dropping or rebounding, so you can release the arm mid-demonstration, while the stiffer frame cuts mechanical play during fine adjustments.
It runs the same workflow as the Star Arm 102-LD on LeRobot, ROS 2 and the Python SDK, and drives the Star Arm 102-FL follower plus third-party arms such as reBot Arm B601-DM and B601-RS.
Related Products
Power Supply Notice
Overview
Upgraded from the LeRobot-listed Star Arm 102-LD
Pose Holding for Stable Demonstration
High-Torque Joints for Precise Motion Capture
420mm Reach for a Larger Operating Space
Stable Desktop Operation for Extended Use
Native Support for Robotics Development Frameworks
Assembled or DIY Kit
Fully Assembled is ready to use and costs $280 including assembly, while DIY Kit is supplied as parts for self-assembly at $259, saving $21. Fully Assembled is for plug-and-play use; DIY Kit is for teaching and hands-on practice.
Media Gallery
Development Ecosystem
LeRobot Ecosystem Integration
ROS 2 Support
Python SDK
Web-Based Control Interface
Applications
Classroom Robotics
Hands-on robotic arm demos for university courses — students learn kinematics, control theory, and motion planning with real hardware. The Star Arm 102-HD DIY kit turns assembly into a hands-on teaching module — students build the leader arm from parts before running kinematics and control labs.
AI Trajectory Collection
Batch-collect high-quality motion data for imitation learning and reinforcement learning — 12-bit encoders deliver clean, jitter-free trajectories. Assembling and calibrating the kit lets students understand encoder zero-positions and joint mapping firsthand, so collected trajectories are cleaner and easier to debug.
Teleoperation Retrofit
Upgrade existing lab robotic arms with a low-cost leader-follower system — no full hardware replacement needed. Starting from the kit keeps retrofit costs low — build the leader arm first, then pair it with an existing follower platform.
Maker & STEM Demos
Interactive robot demos for maker spaces, science fairs, and public outreach — engaging, safe, and easy to set up. The from-parts build itself works as a workshop activity, with students assembling the arm before the demo.
Algorithm Prototyping
Single-operator teleoperation for rapid validation of grasping, path planning, and AI robotics algorithms. Budget-limited labs can start with the kit and add an assembled unit later if throughput demands it.
Part List
|
102-HD |
Qty. |
|---|---|
|
Screws |
1 |
|
Threadlocker |
1 |
|
Woodworking Clamps |
2 |
|
Spare UC-01 PCB |
1 |
|
XT30 Power Adapter Cable |
1 |
|
200mm Servo Extension Cable |
1 |
|
USB-A to USB-C Cable |
1 |
|
Mouse Pad |
1 |
|
Base Plate |
1 |
|
3D-printed structural parts (DIY Kit only) |
1 |
|
Servos (DIY Kit only) |
7 |
Specification
|
Item |
Star Arm 102-HD |
|---|---|
|
Reach |
420mm |
|
DOF |
6+1 |
|
Joint Range |
Joint 1: ±110° | Joint 2: 0°~180° | Joint 3: 0°~270° | Joint 4: ±90° | Joint 5: ±65° | Joint 6: ±150° | Controller: 0~90° |
|
Servos |
RP8-U45H-M × 4 (Joints #1-#4) | RP8-U45H-M-C029 × 1 (Joint #5) | RP8-U45H-M-C029 × 2 (Joint #6 & Wrist Joint) |
|
Protocol Type |
UART |
|
Communication Hub |
UC-01 |
|
Power Supply |
12V 10A / XT30 |
|
Weight |
883g |
|
Operating Temperature |
0-40℃ |
|
Works with ROS 2 |
✓ |
|
Works with LeRobot |
✓ |
CAD Drawings
Documents
Certification
|
HS Code |
9023009000 |
|
ECCN Code |
EAR99 |
|
Country of Origin |
China |
|
Certifications |
CE, FCC, RoHS |
| Product Series | Star Arm 102 |
|---|---|
| Reach | 420mm |
| DOF | 6+1 |
| Joint Range | Joint 1: ±110° | Joint 2: 0°~180° | Joint 3: 0°~270° | Joint 4: ±90° | Joint 5: ±65° | Joint 6: ±150° | Controller: 0~90° |
| Servos | RP8-U45H-M × 4 (Joints #1-#4) | RP8-U45H-M-C029 × 1 (Joint #5) | RP8-U45H-M-C029 × 2 (Joint #6 & Wrist Joint) |
| Protocol Type | UART |
| Communication Hub | UC-01 |
| Power Supply | 12V 10A / XT30 |
| Weight | 883g |
| Operating Temperature | 0-40℃ |
| Works with ROS 2 | ✓ |
| Works with Lerobot | ✓ |
