Servo Gimbal - CAD Drawings & 3D Model Downloads
Download CAD drawings and 3D models for Fashion Star servo gimbals.
Tip
- Use SolidWorks 2021 or later to open the models.
- Products with the same YT160, YT200, or YT260 series number share the same CAD files.
- Dimensions are for reference only. Please refer to the actual product.
YT160 Series
| Appearance | Model | Downloads |
|---|---|---|
 |

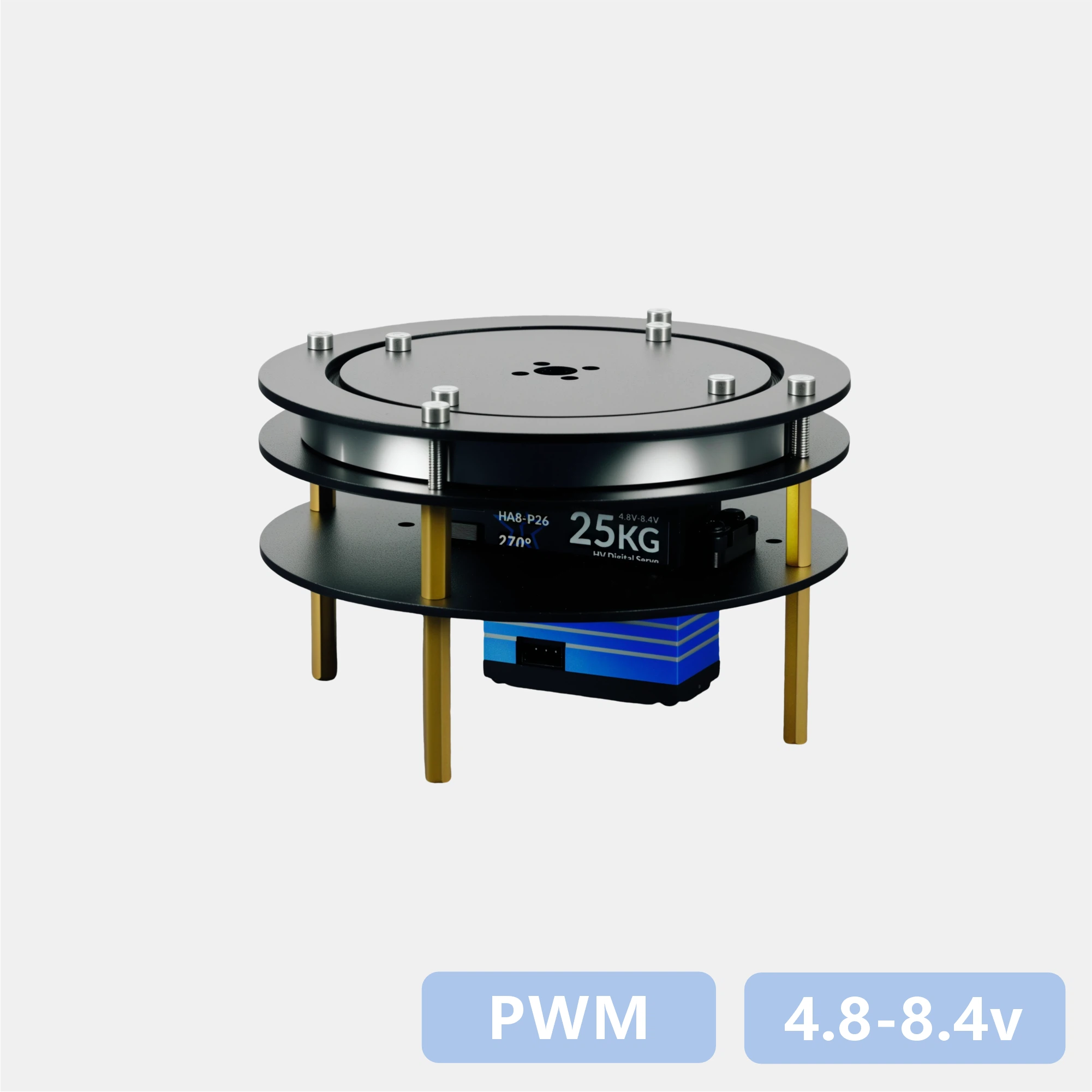

YT160-P26 | PDF | STEP | DWGPDFSTEPDWG |
 |

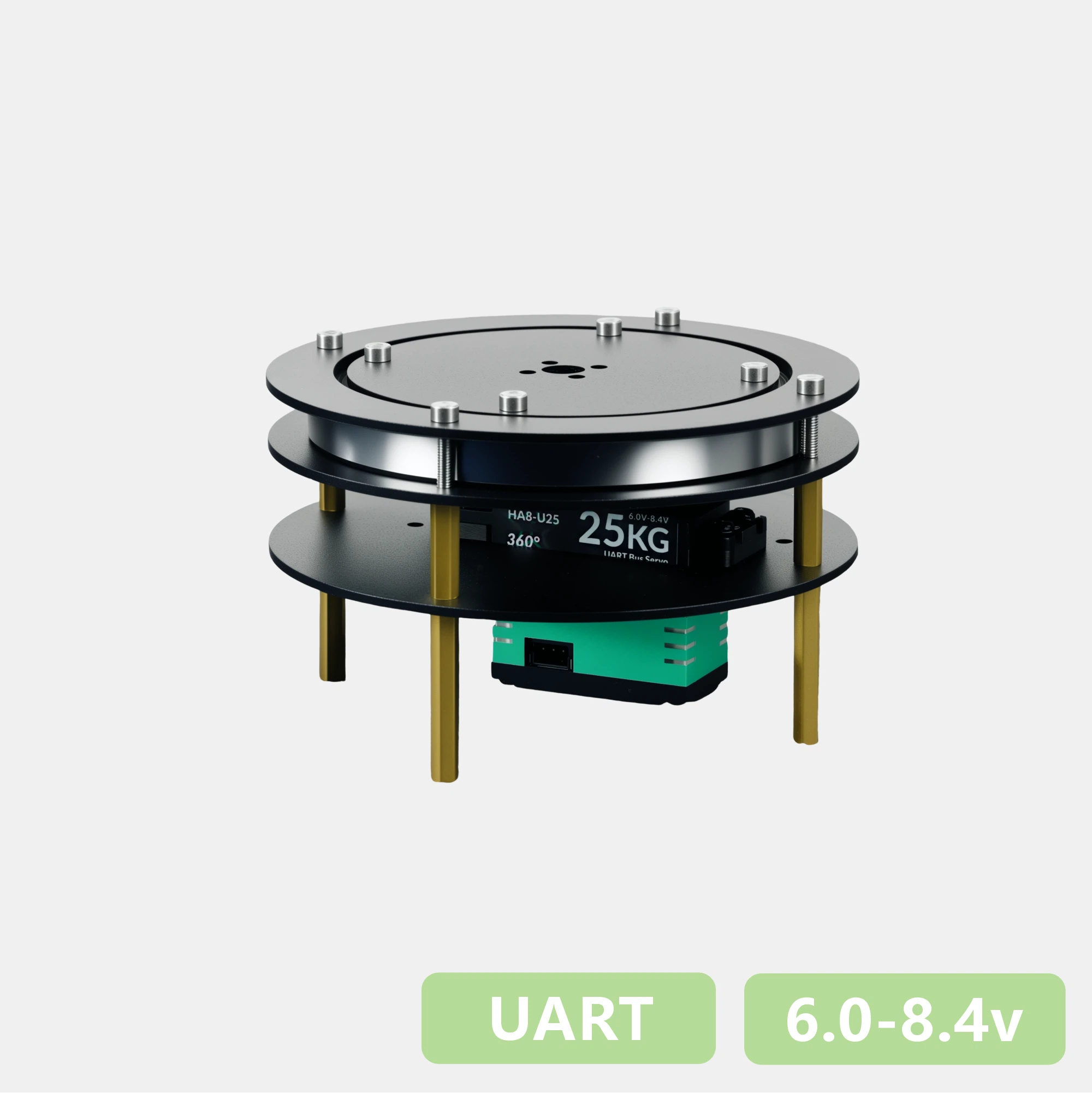

YT160-U25 | PDF | STEP | DWGPDFSTEPDWG |
YT200 Series
| Appearance | Model | Downloads |
|---|---|---|
 |

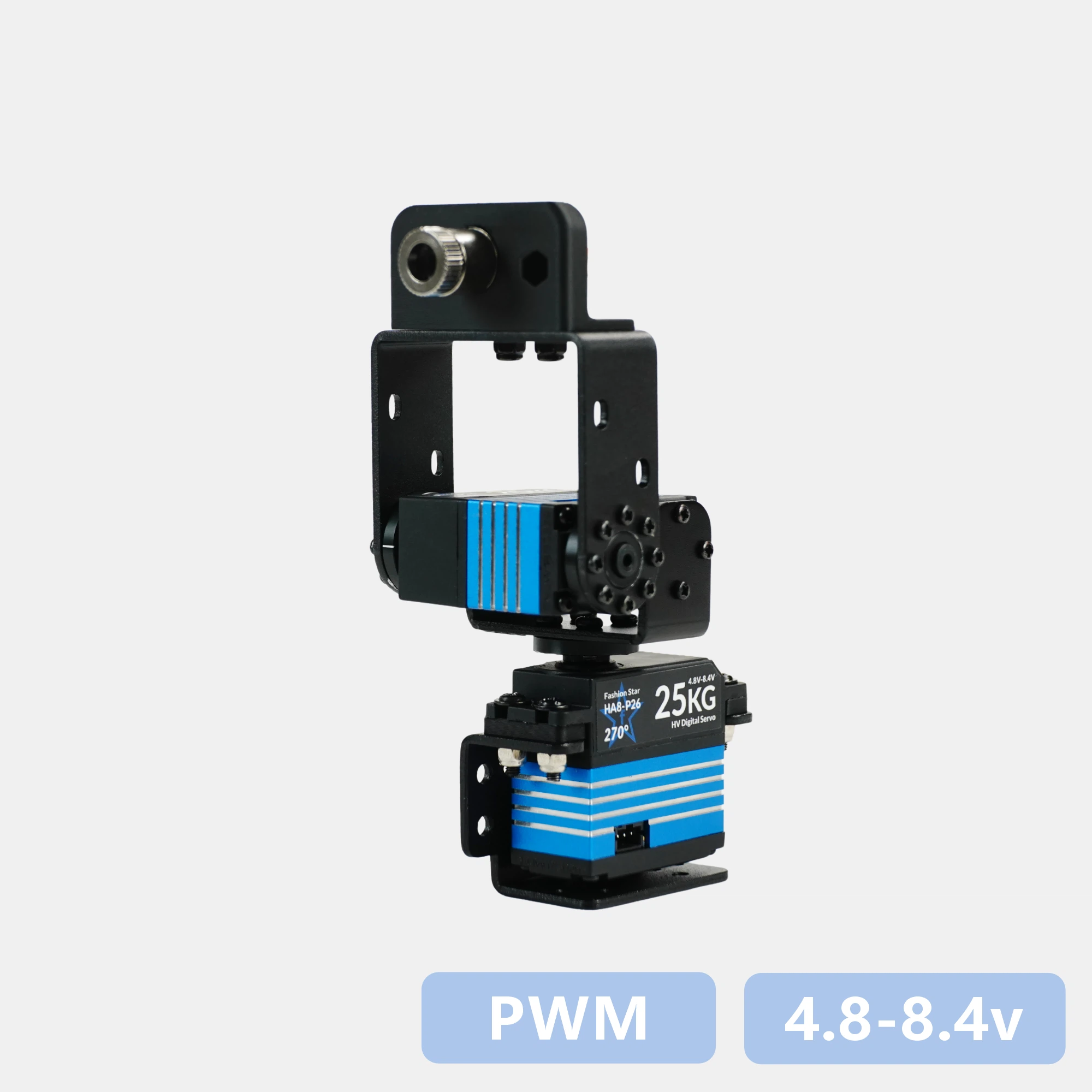

YT200-P26 | PDF | STEP | DWGPDFSTEPDWG |
 |

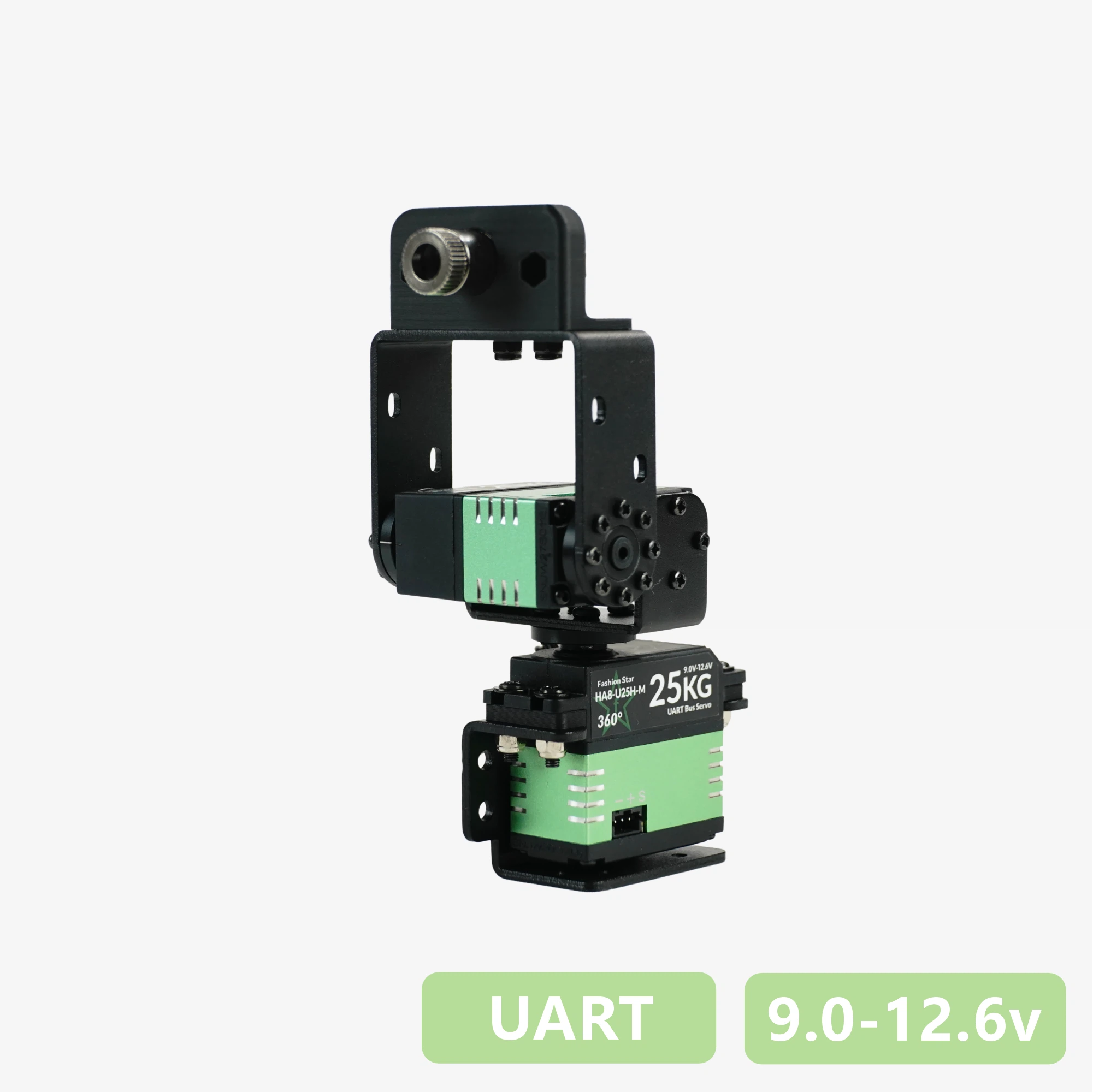

YT200-U25H | PDF | STEP | DWGPDFSTEPDWG |
 |

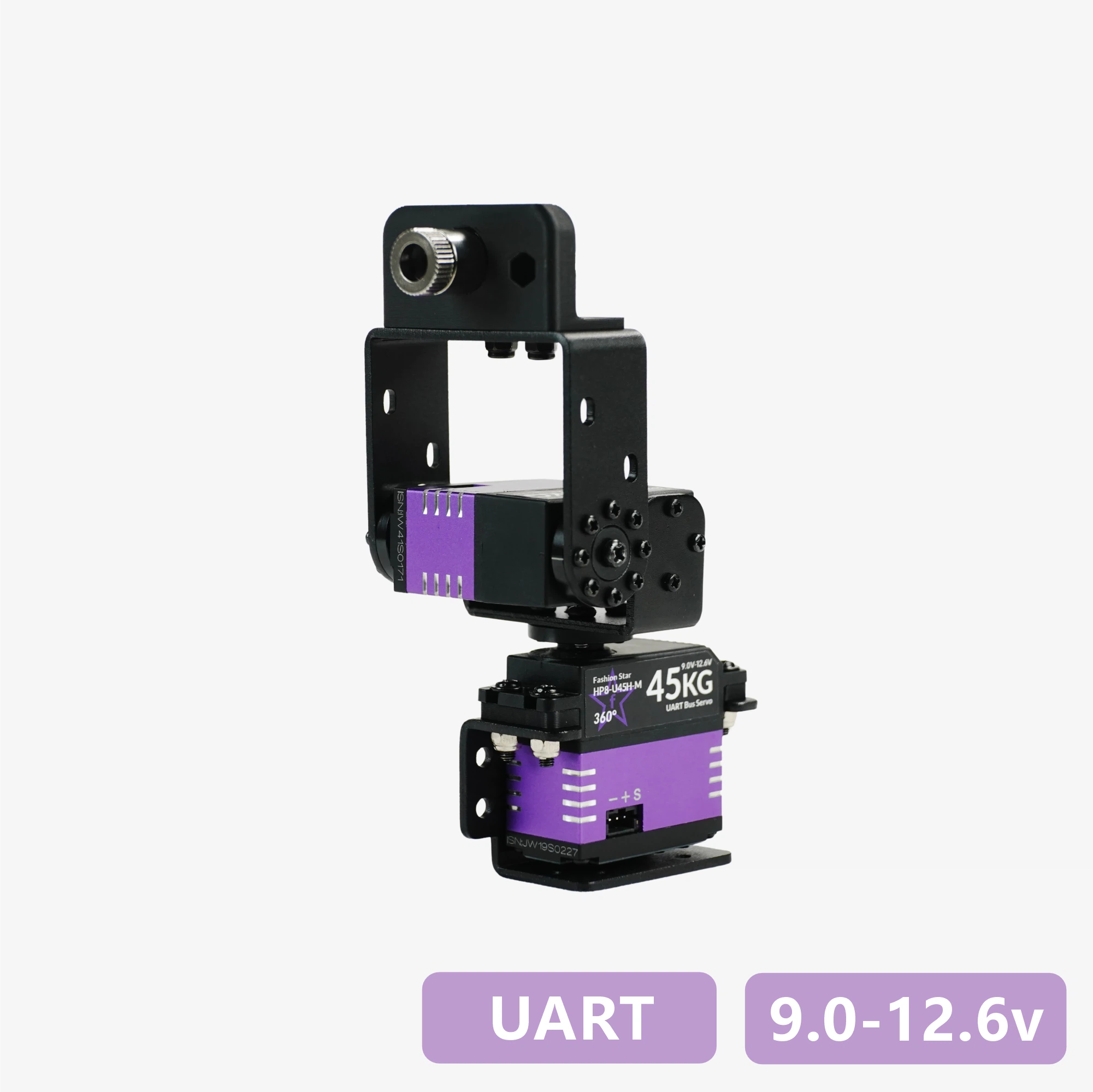

YT200-U45H | PDF | STEP | DWGPDFSTEPDWG |
 |

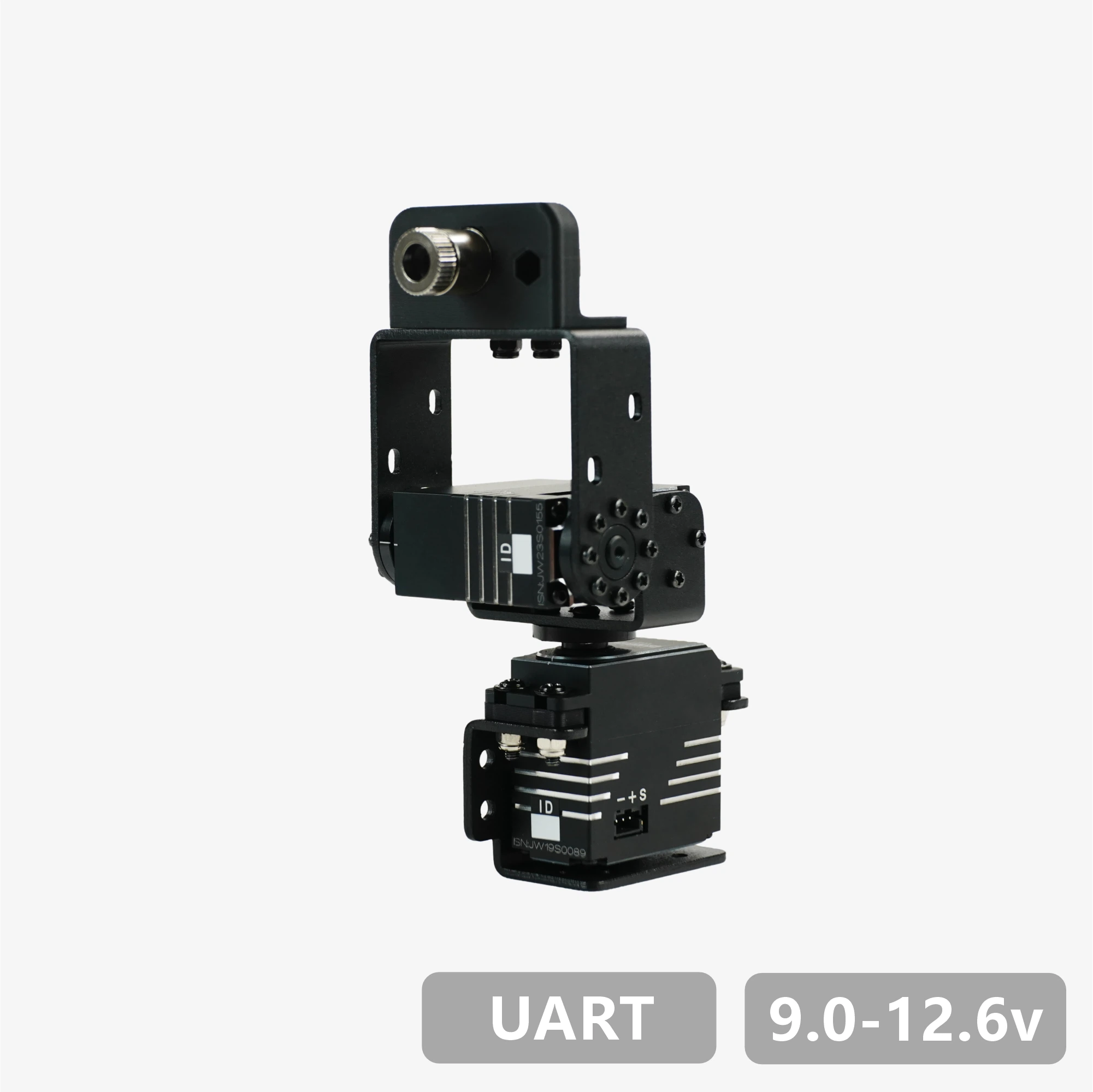

YT200-U28H | PDF | STEP | DWGPDFSTEPDWG |
YT260 Series
| Appearance | Model | Downloads |
|---|---|---|
 |
YT260-U25H | PDF | STEP | DWGPDFSTEPDWG |
 |

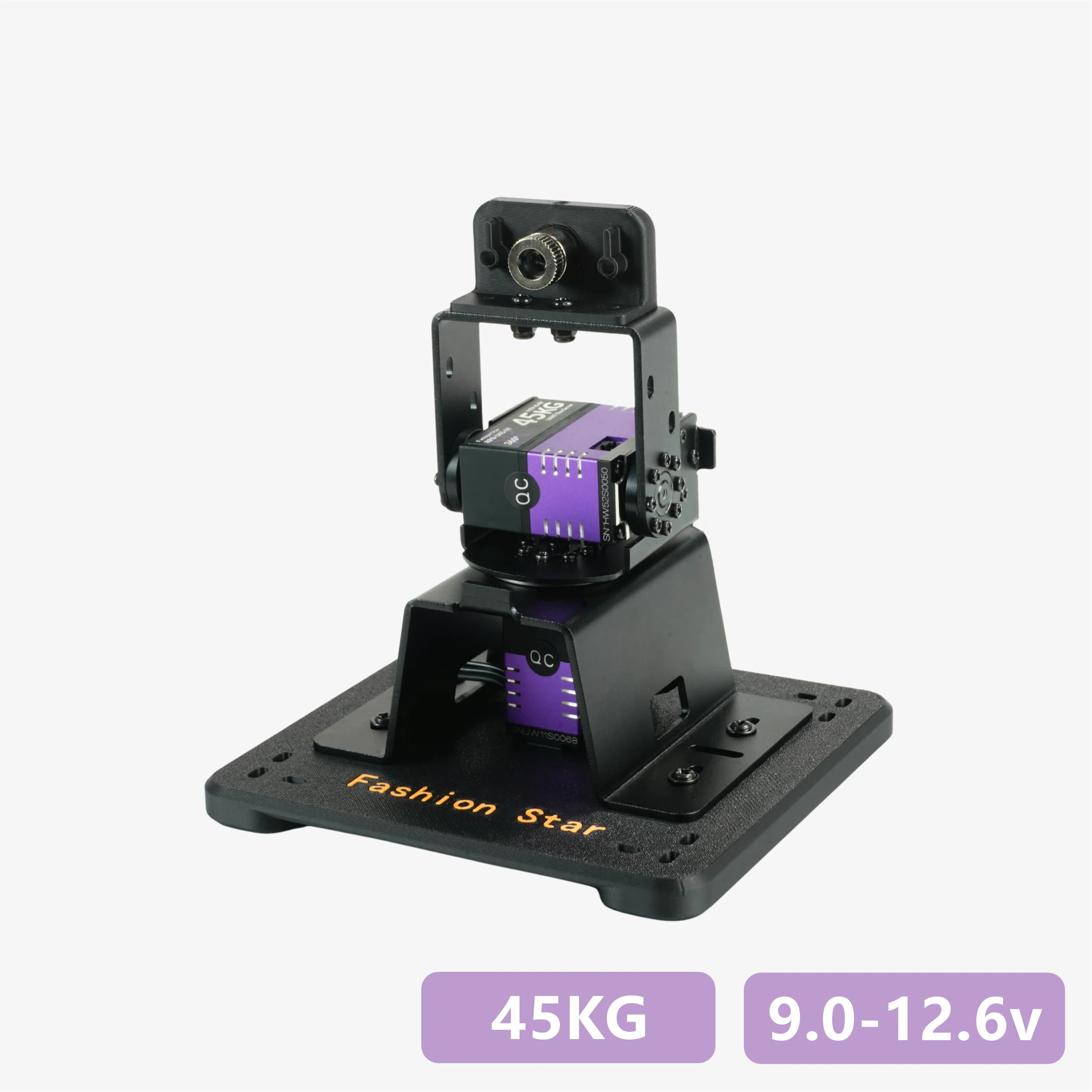

YT260-U45H | PDF | STEP | DWGPDFSTEPDWG |
 |

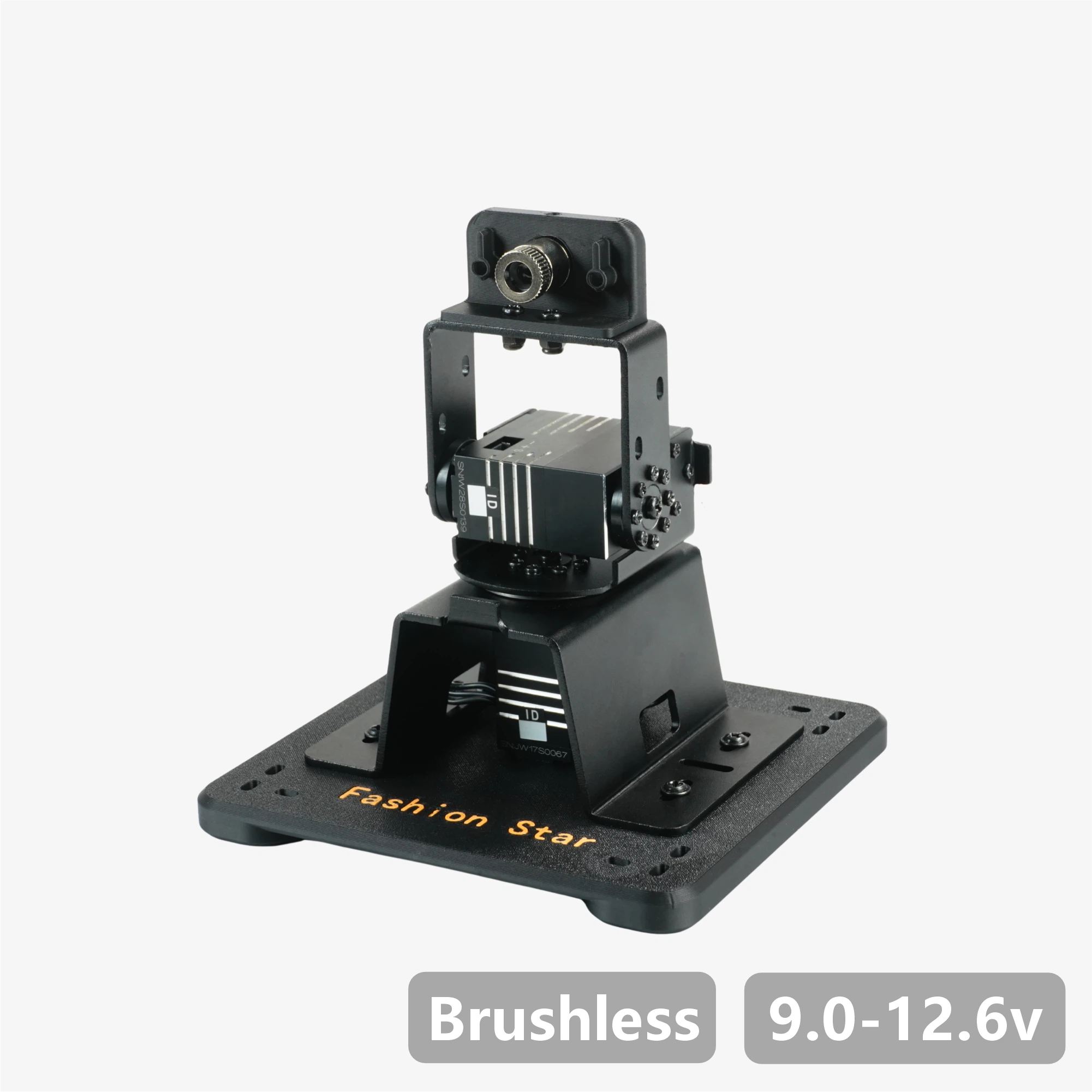

YT260-U28H | PDF | STEP | DWGPDFSTEPDWG |
