Bus Servo SDK User Manual (Arduino Uno)

版本	GitHub	开发资源包
v1.2026.0214		点击下载

1. Install the Arduino Library for Bus Servo

Copy the entire project folder arduino-sdk into the libraries folder shown in the path below.

2. Hardware Connection Instructions

2.1 Physical Wiring Diagram Between UNO and UC01

Arduino Uno and UC01 Physical Wiring Diagram

2.2 UNO and UC01 Wiring Table

Controller Pin	UC01 Pin	Description
D0 (RX)	TX	Controller receive
D1 (TX)	RX	Controller transmit
GND	GND	Common ground
5V	5V	5V power supply

2.3 Notes When Uploading Code

Because the UNO has only one hardware serial port, it needs to be time-shared as both the upload port and the control bus for the servo. During code upload, disconnect the UC01 adapter board from the UNO, then reconnect UC01 and UNO after upload is complete. In other words:

During upload: disconnect UC01--UNO, connect PC--UNO
During use: connect UC01--UNO, disconnect PC--UNO

3. Software Serial Port Log Output

· Install the driver for the USB-to-TTL module.

· Connect Arduino and the USB-to-TTL module with Dupont wires.

Arduino Uno	USB-to-TTL Module
pin6 (software serial port Rx receive end)	Tx (receive end of the USB-to-TTL module)
pin7 (software serial port Tx transmit end)	Rx (transmit end of the USB-to-TTL module)
GND	GND

The physical wiring is shown below:

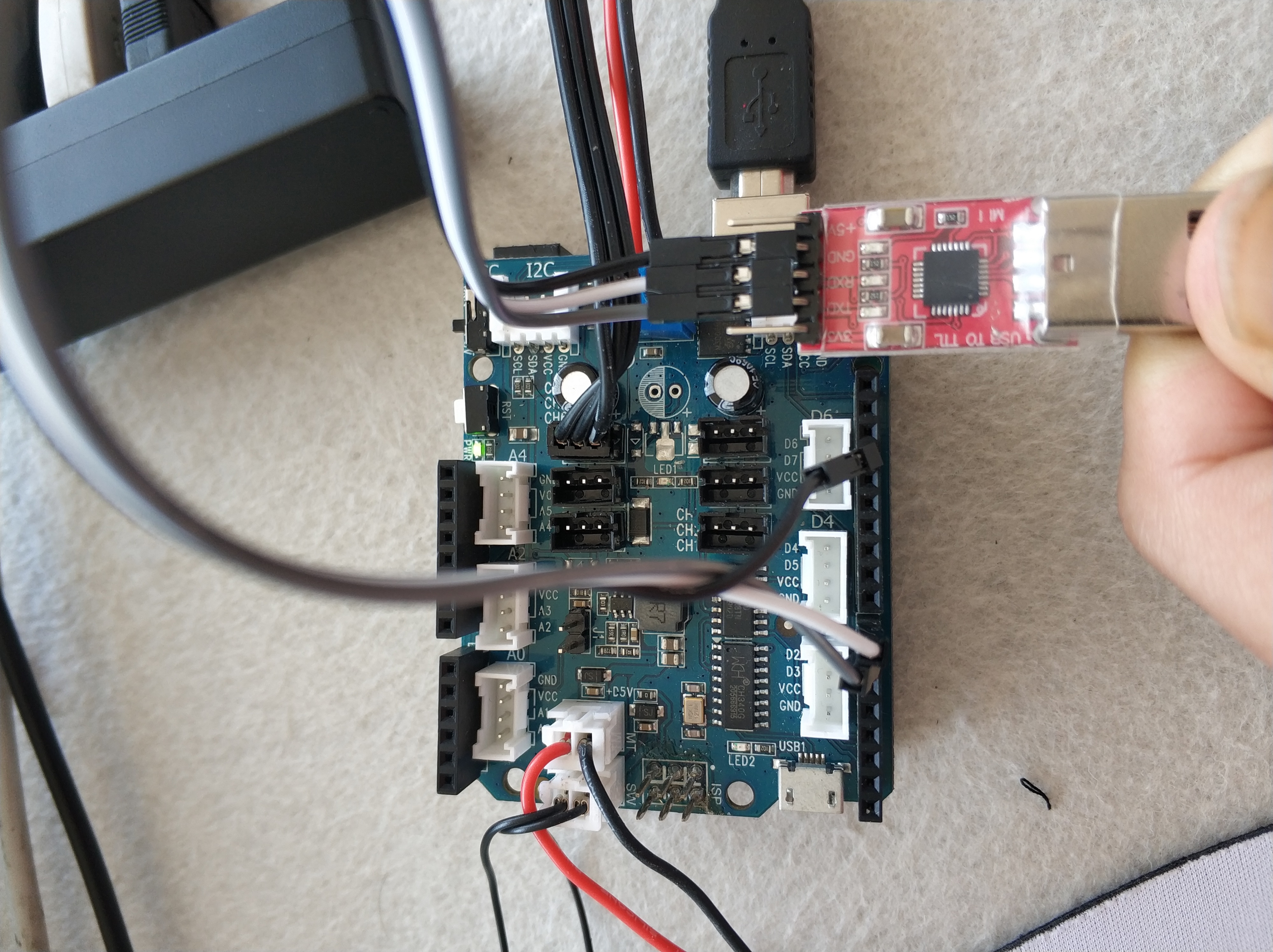

Arduino Software serial port USB-to-TTL Module Physical Photo

· Plug the USB-to-TTL module into the computer USB port.

· Open the serial port configuration Assistant, select the port number of the USB-to-TTL module, and configure it as shown below:

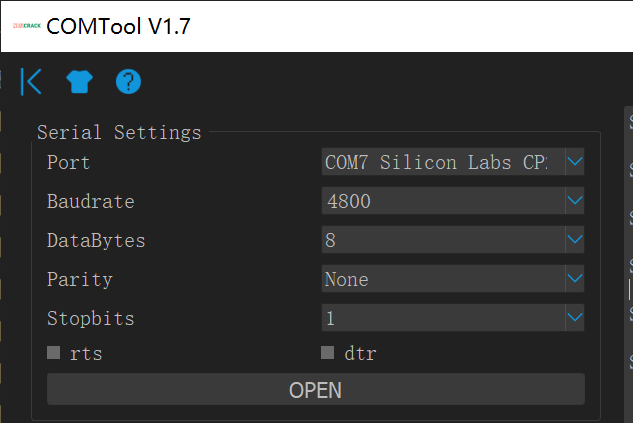

serial port configuration Assistant Configuration

Click Open to open the port.

· Open Arduino IDE > Examples > fashionstar-uart-servo-arduino-V2 > software_serial and upload the example to Arduino Uno.

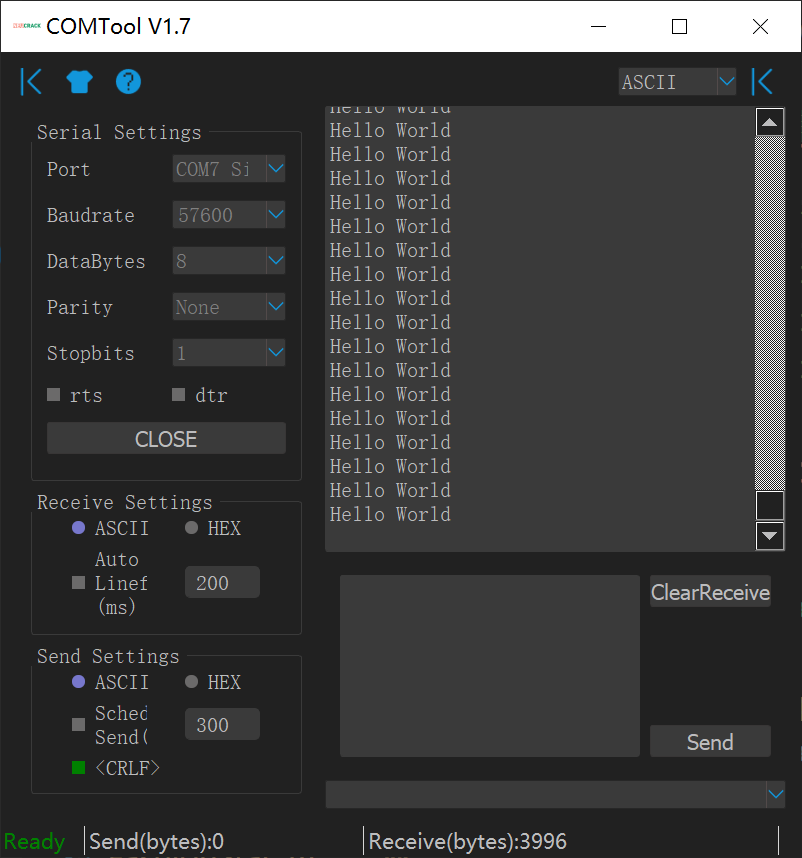

· View the running result, as shown below:

4. Creating and Initializing the Servo Object

#include "FashionStar_UartServoProtocol.h" // 总线伺服舵机通信协议
#include "FashionStar_UartServo.h" // 总线伺服舵机SDK

FashionStar_UartServoProtocol handles the underlying communication protocol logic of the servo, such as data frame transmission/reception and data checksum.

FashionStar_UartServo is the SDK of the servo, a higher-level wrapper above the protocol layer.

Create a bus servo communication protocol object FSUS_Protocol. In the constructor, fill in the baud rate for communication between Arduino and bus servo. The default is 115200.

#define BAUDRATE 115200 // 波特率

FSUS_Protocol protocol(BAUDRATE); //协议

Create a FSUS_Servo servo object. When creating it, pass in the ID of the servo and the pointer &protocol to the communication protocol object. The ID range of the servo is 0-254.

#define SERVO_ID 0 //舵机ID号

FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

Next, initialize the communication protocol object and the servo object in the setup() function.

void setup(){
    ...
    protocol.init(); // 舵机通信协议初始化
    uservo.init(); // 总线伺服舵机初始化
    ...
}

5. Servo Communication Check

5.1 API - `ping`

Call the ping() function of servo to perform servo communication detection and determine whether the servo is online.

bool isOnline = uservo.ping(); // 舵机通信检测

5.2 Example Source Code

servo_ping.ino

/*
 * 舵机通信检测
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 **/
#include "FashionStar_UartServoProtocol.h" // 总线伺服舵机通信协议
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 总线伺服舵机配置
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE);       //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

void setup(){
    protocol.init(); // 舵机通信协议初始化
    uservo.init(); // 总线伺服舵机初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE);
    DEBUG_SERIAL.println("Start To Ping Servo\n");
}

void loop(){
    bool isOnline = uservo.ping(); // 舵机通信检测
    String message = "servo #"+String(uservo.servoId,DEC) + " is ";  // 日志输出
    if(isOnline){
        message += "online";
    }else{
        message += "offline";
    }
    // 调试串口初始化
    DEBUG_SERIAL.println(message);
    // 等待1s
    delay(1000);
}

Log output:

Start To Ping Servo


servo #0 is online.

servo #0 is online.

servo #0 is online.

servo #0 is online.

6. Servo Damping Mode

6.1 API - `setDamping`

Set the servo to damping mode.

void FSUS_Servo::setDamping(FSUS_POWER_T power)

Input Parameters

· power: power of the servo, in mW. The higher the power value, the greater the damping force when rotating the servo.

Usage Example:

#define DAMPING_POWER 800 // 阻尼模式下的功率(单位mW) 500,800,1000

uservo.setDamping(DAMPING_POWER);

6.2 Example Source Code

servo_damping.ino

/*
 * 设置舵机为阻尼模式
 * 调整参数`DAMPING_POWER`感受不同的阻尼力
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 **/
#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 总线伺服舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率
#define DAMPING_POWER 800 // 阻尼模式下的功率(单位mW) 500,800,1000

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

void setup(){

    protocol.init(); // 通信协议初始化
    uservo.init(); // 舵机初始化
    // 打印日志
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE);
    DEBUG_SERIAL.println("Set Servo Mode To Damping");
    // 设置电机的阻尼系数
    uservo.setDamping(DAMPING_POWER);
}

void loop(){
    // TODO;
}

Log output:

Set Servo Mode To Damping

7. Servo Angle Query

7.1 API - `queryAngle`

Query the current real angle of the servo, send an angle query command to the servo, and assign the angle value to the curAngle property of the servo object.

FSUS_SERVO_ANGLE_T FSUS_Servo::queryAngle()

Input Parameters

· <无>

Output Parameters

· curAngle: current real angle of the servo

Usage Example:

Example 1

float curAngle = uservo.queryAngle()

Example 2

// 舵机角度查询 (更新角度)
uservo.queryAngle();
// 通过.curAngle访问当前的真实角度
uservo.curAngle

7.2 Example Source Code

servo_query_angle.ino

/*
 * 舵机角度回读实验
 * 用手掰动舵机, 角度回读并将角度读数通过SPI发送
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 **/
#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 总线伺服舵机配置
#define SERVO_ID 0 //舵机ID号
#define DAMPING_POWER 800 // 阻尼模式下的功率(单位mW) 500,800,1000
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif



FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机


void setup(){
    protocol.init();                    // 通信协议初始化
    uservo.init();                      //舵机角度初始化
    uservo.setDamping(DAMPING_POWER);   // 舵机设置为阻尼模式
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE);
    DEBUG_SERIAL.println("Query Servo Angle\n");
}

void loop(){
    // 舵机角度查询 (更新角度)
    uservo.queryRawAngle();
    // 日志输出
    String message = "Status Code: " + String(uservo.protocol->responsePack.recv_status, DEC) + " servo #"+String(uservo.servoId, DEC) + " , Current Angle = "+String(uservo.curRawAngle, 1)+" deg";
    DEBUG_SERIAL.println(message);
    // 等待1s
    delay(1000);
}

Output Log

Query Servo Angle

Status Code: 0 servo #0 , Current Angle = -99.0

Status Code: 0 servo #0 , Current Angle = -99.0

Status Code: 0 servo #0 , Current Angle = -99.0

8. Servo Wheel Mode (Deprecated in Version 316 and Later)

8.1 API - `wheelStop`

Wheel mode: stop rotation.

Function Prototype

void FSUS_Servo::wheelStop()

Input Parameters

· <无>

8.2 API - `wheelRun`

The wheel rotates continuously.

Function Prototype

void FSUS_Servo::wheelRun(uint8_t is_cw)

Input Parameters

· is_cw: wheel rotation direction

0: counterclockwise

1: clockwise

8.3 API - `wheelRunNTime`

The wheel rotates for a specified time.

Function Prototype

void FSUS_Servo::wheelRunNTime(uint8_t is_cw, uint16_t time_ms)

Input Parameters

· is_cw: wheel rotation direction

0: counterclockwise

1: clockwise

· time_ms: duration of continuous rotation, in ms

8.4 API - `wheelRunNCircle`

The wheel rotates for a specified number of turns.

Function Prototype

void FSUS_Servo::wheelRunNCircle(uint8_t is_cw, uint16_t circle_num)

Input Parameters

· is_cw: wheel rotation direction

0: counterclockwise

1: clockwise

· circle_num: number of wheel turns

8.5 Example Source Code

servo_wheel_mode.ino

/*
 * 测试舵机轮式模式
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 */
#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 配置参数
#define BAUDRATE 115200 // 波特率
#define SERVO_ID 0 //舵机ID号

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

/* 轮子持续旋转指令与停止指令测试 */
void testWheelRunAndStop(){
    uservo.wheelRun(FSUS_CCW); // 轮子持续旋转, 方向为逆时针
    delay(2000);            // 等待2s
    uservo.wheelStop();
    delay(2000);            // 等待2s
    uservo.wheelRun(FSUS_CW); // 轮子持续旋转
    delay(2000);            // 等待2s
    uservo.wheelStop();
    delay(2000);            // 等待2s
}

/* 测试轮子旋转特定的时间 */
void testWheelRunNTime(){
    uservo.wheelRunNTime(FSUS_CW, 5000); // 轮子持续旋转5s(顺时针)
    delay(5000);
    uservo.wheelRunNTime(FSUS_CCW, 5000); // 轮子持续旋转5s(逆时针)
    delay(5000);
}

/* 测试轮子旋转特定的圈数 */
void testWheelRunNCircle(){
    uint16_t nCircle = 2; // 旋转圈数
    uint16_t delayMsEstimate = (uint16_t)(360.0 * nCircle / uservo.speed * 1000); // 估计旋转的时间
    uservo.wheelRunNCircle(FSUS_CW, 2); // 轮子持续旋转2圈(顺时针)
    delay(delayMsEstimate);             // 等到轮子旋转到特定的位置

    uservo.wheelRunNCircle(FSUS_CCW, 2);// 轮子持续旋转2圈(逆时针)
    delay(delayMsEstimate);             // 等到轮子旋转到特定的位置}
}

void setup(){
    protocol.init();        // 通信协议初始化
    uservo.init();          //舵机角度初始化
    uservo.setSpeed(100);    // 设置转速为20°/s

    // 测试持续旋转与停止
    // testRunAndStop();

    // 测试旋转特定的时间
    // testWheelRunNTime();

    // 测试旋转特定的圈数
    testWheelRunNCircle();
}

void loop(){
}

9. Single-Turn Angle Control

9.1 API - `setAngle`

Set the angle of the servo.

Function Prototype

/* 设置舵机的原始角度 */
void FSUS_Servo::setRawAngle(FSUS_SERVO_ANGLE_T rawAngle, FSUS_INTERVAL_T interval, FSUS_POWER_T power)

/* 设置舵机的原始角度 */
void FSUS_Servo::setRawAngle(FSUS_SERVO_ANGLE_T rawAngle, FSUS_INTERVAL_T interval)

/* 设置舵机的原始角度 */
void FSUS_Servo::setRawAngle(FSUS_SERVO_ANGLE_T rawAngle)

Input Parameters

· rawAngle: target angle of the servo, in degrees

· interval: rotation period of the servo, in ms

· power: maximum power, in mW

9.2 API - `setRawAngleByInterval`

Function Prototype

// 设置舵机的原始角度(指定周期)
void FSUS_Servo::setRawAngleByInterval(FSUS_SERVO_ANGLE_T rawAngle, FSUS_INTERVAL_T interval, FSUS_INTERVAL_T t_acc, FSUS_INTERVAL_T t_dec, FSUS_POWER_T power)

Input Parameters

· rawAngle: target angle of the servo, in degrees

· interval: rotation period of the servo, in ms

· t_acc: acceleration time

· t_dec: deceleration time

· power: maximum power, in mW

9.3 API - `setRawAngleByVelocity`

Function Prototype

// 设定舵机的原始角度(指定转速)
void FSUS_Servo::setRawAngleByVelocity(FSUS_SERVO_ANGLE_T rawAngle, FSUS_SERVO_SPEED_T velocity, FSUS_INTERVAL_T t_acc, FSUS_INTERVAL_T t_dec, FSUS_POWER_T power)

Input Parameters

· rawAngle: target angle of the servo, in degrees

· velocity: rotation speed of the servo, in °/s

· t_acc: acceleration time

· t_dec: deceleration time

· power: maximum power, in mW

9.4 API - `isStop`

Determine whether the servo is rotating or stationary.

When this function runs, it first queries the current angle of the servo, then returns whether the difference from the target angle targetAngle is smaller than the control deadband.

Function Prototype

bool FSUS_Servo::isStop()

Input Parameters

· <无>

Return Parameters

· is_stop:

true: the servo has reached the target angle and stopped

false: the servo has not reached the target angle and is still rotating

9.5 API - `setRange`

Set the angle range of the servo.

Function Prototype

void FSUS_Servo::setAngleRange(FSUS_SERVO_ANGLE_T minAngle, FSUS_SERVO_ANGLE_T maxAngle)

Input Parameters

· minAngle: lower angle limit of the servo

· maxAngle: upper angle limit of the servo

Output Parameters

· <无>

9.6 Example Source Code

servo_set_angle

/*
 * 设置舵机的角度(单圈模式)
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 总线伺服舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

uint16_t interval;  // 运行周期 单位ms
uint16_t t_acc;     // 加速时间 单位ms
uint16_t t_dec;     // 减速时间 单位ms
float velocity;         // 目标转速 单位°/s

/* 等待并报告当前的角度*/
void waitAndReport(){
    uservo.wait();          // 等待舵机旋转到目标角度
    DEBUG_SERIAL.println("Real Angle = " + String(uservo.curRawAngle, 1) + " Target Angle = "+String(uservo.targetRawAngle, 1));
    delay(2000); // 暂停2s

}

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
    DEBUG_SERIAL.println("Set Servo Angle");
}

void loop(){
    DEBUG_SERIAL.println("Set Angle = 90°");
    uservo.setRawAngle(90.0);  // 设置舵机的角度
    waitAndReport();
    delay(2000);

    DEBUG_SERIAL.println("Set Angle = -90°");
    uservo.setRawAngle(-90);
    waitAndReport();
    delay(2000);

    DEBUG_SERIAL.println("Set Angle = 90° - Set Interval = 500ms");
    interval = 1000;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleByInterval(90, interval, t_acc, t_dec, 0);
    waitAndReport();
    delay(2000);

    DEBUG_SERIAL.println("Set Angle = -90° - Set Velocity = 200°/s");
    velocity = 200.0;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleByVelocity(-90, velocity, t_acc, t_dec, 0);
    waitAndReport();
    delay(2000);
}

Log output:

Set Angle = 90°
Real Angle = 89.7 Target Angle = 90.0
Set Angle = -90°
Real Angle = -89.6 Target Angle = -90.0
Set Angle = 90° - Set Interval = 500ms
Real Angle = 89.7 Target Angle = 90.0
Set Angle = -90° - Set Velocity = 200°/s
Real Angle = -89.6 Target Angle = -90.0

10. Servo Blocking Wait

10.1 API - `wait`

Block and wait for the servo to rotate to the target angle.

Function Prototype

void FSUS_Servo::wait()

Input Parameters

· <无>

Output Parameters

· <无>

10.2 Example Source Code

servo_wait.ino

/*
 * 测试wait()函数,轮询角度直到舵机旋转到目标位置
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 */
#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 总线伺服舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

void setup(){

    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE);
    DEBUG_SERIAL.println("Test Wait");
}

void loop(){
    DEBUG_SERIAL.println("Set Angle = 90.0");
    uservo.setAngle(90.0); // 设置舵机的角度
    uservo.wait();
    DEBUG_SERIAL.println("Real Angle = "+String(uservo.curRawAngle, 2));

    DEBUG_SERIAL.println("Set Angle = -90.0");
    uservo.setAngle(-90);
    uservo.wait();
    DEBUG_SERIAL.println("Real Angle = "+String(uservo.curRawAngle, 2));
}

Log output:

Set Angle = -90.0
Real Angle = -89.00
Set Angle = 90.0
Real Angle = 89.80
Set Angle = -90.0
Real Angle = -89.00
Set Angle = 90.0
Real Angle = 89.80
Set Angle = -90.0
Real Angle = -89.00
Set Angle = 90.0
Real Angle = 89.80
Set Angle = -90.0
Real Angle = -89.00

11. Multi-Turn Angle Control

11.1 API - `setRawAngleMTurn`

Function Prototype

// 设定舵机的原始角度(多圈)
void FSUS_Servo::setRawAngleMTurn(FSUS_SERVO_ANGLE_T rawAngle, FSUS_INTERVAL_T_MTURN interval, FSUS_POWER_T power)

// 设定舵机的原始角度(多圈)
void FSUS_Servo::setRawAngleMTurn(FSUS_SERVO_ANGLE_T rawAngle, FSUS_INTERVAL_T_MTURN interval)

// 设定舵机的原始角度(多圈)
void FSUS_Servo::setRawAngleMTurn(FSUS_SERVO_ANGLE_T rawAngle)

Input Parameters

· rawAngle: target angle of the servo, in degrees

· interval: rotation period of the servo, in ms

· power: maximum power, in mW

Output Parameters

· <无>

11.2 API - `setRawAngleByInterval`

Function Prototype

// 设定舵机的原始角度(多圈+指定周期)
void FSUS_Servo::setRawAngleMTurnByInterval(FSUS_SERVO_ANGLE_T rawAngle, FSUS_INTERVAL_T_MTURN interval, FSUS_INTERVAL_T t_acc, FSUS_INTERVAL_T t_dec, FSUS_POWER_T power)

Input Parameters

· rawAngle: target angle of the servo, in degrees

· interval: rotation period of the servo, in ms

· t_acc: acceleration time, in ms

· t_dec: deceleration time, in ms

· power: maximum power, in mW

Output Parameters

· <无>

11.3 API - `setRawAngleMTurnByVelocity`

Function Prototype

// 设定舵机的原始角度(多圈+指定转速)
void FSUS_Servo::setRawAngleMTurnByVelocity(FSUS_SERVO_ANGLE_T rawAngle, FSUS_SERVO_SPEED_T velocity, FSUS_INTERVAL_T t_acc, FSUS_INTERVAL_T t_dec, FSUS_POWER_T power)

Input Parameters

· rawAngle: target angle of the servo, in degrees

· velocity: rotation speed of the servo, in °/s

· t_acc: acceleration time, in ms

· t_dec: deceleration time, in ms

· power: maximum power, in mW

Output Parameters

· <无>

11.4 Example Source Code

servo_set_angle_mturn.ino

/*
 * 设置舵机的角度(多圈模式)
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖


// 总线伺服舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

uint32_t interval;  // 运行周期 单位ms
uint16_t t_acc;     // 加速时间 单位ms
uint16_t t_dec;     // 减速时间 单位ms
float velocity;         // 目标转速 单位°/s

/* 等待并报告当前的角度*/
void waitAndReport(){
    uservo.wait();          // 等待舵机旋转到目标角度
    DEBUG_SERIAL.println("Real Angle = " + String(uservo.curRawAngle, 1) + " Target Angle = "+String(uservo.targetRawAngle, 1));
    delay(2000); // 暂停2s
}

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
    DEBUG_SERIAL.println("Set Servo Angle");
}

void loop(){
    DEBUG_SERIAL.println("Set Angle = 900°");
    uservo.setRawAngleMTurn(900.0);  // 设置舵机的角度
    waitAndReport();

    DEBUG_SERIAL.println("Set Angle = -900.0°");
    uservo.setRawAngleMTurn(-900.0);
    waitAndReport();

    DEBUG_SERIAL.println("Set Angle = 900° - Set Interval = 10s");
    interval = 10000;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleMTurnByInterval(900, interval, t_acc, t_dec, 0);
    waitAndReport();

    DEBUG_SERIAL.println("Set Angle = -900° - Set Velocity = 200°/s");
    velocity = 200.0;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleMTurnByVelocity(-900, velocity, t_acc, t_dec, 0);
    waitAndReport();
}

Log output:

Set Angle = 900°
Set Servo Angle
Set Angle = 900°
Real Angle = 899.0 Target Angle = 900.0
Set Angle = -900.0°
Real Angle = -899.0 Target Angle = -900.0
Set Angle = 900° - Set Interval = 10s
Real Angle = 899.0 Target Angle = 900.0
Set Angle = -900° - Set Velocity = 200°/s
Real Angle = -899.0 Target Angle = -900.0

12. Servo Torque Switch

12.1 API - `setTorque`

Function Prototype

void FSUS_Servo::setTorque(bool enable)

Input Parameters

· enable: whether torque is enabled

ture: enable torque

false: disable torque

Usage Example

uservo.setTorque(true); // 开启扭力

12.2 Example Source Code

servo_torque.ino

/*
 * 测试舵机扭力开关
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 */
#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 配置参数
#define BAUDRATE 115200 // 波特率
#define SERVO_ID 0 //舵机ID号

FSUS_Protocol protocol; //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机
void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机初始

    uservo.setTorque(true); // 开启扭力
    // uservo.setTorque(false); // 开启扭力
}

void loop(){

}

13. Servo Calibration

13.1 API - `calibration`

In the FSUS_Servo class, there are two calibration-related parameters:

class FSUS_Servo{
public:
    ...
    float kAngleReal2Raw; // 舵机标定数据-舵机角度与位置之间的比例系数
    float bAngleReal2Raw; // 舵机标定数据-舵机角度与位置转换过程中的偏移量
    ...
}

The mapping relationship between the real angle and raw angle of the servo is:

$$ angleRaw = kAngleReal2Raw \cdot angleReal + bAngleReal2Raw $$

Function Prototype

void FSUS_Servo::calibration(FSUS_SERVO_ANGLE_T rawA, FSUS_SERVO_ANGLE_T realA, FSUS_SERVO_ANGLE_T rawB, FSUS_SERVO_ANGLE_T realB)

Input Parameters

· rawA: raw angle of the servo at position A

· realA: real angle of the servo at position A

· rawB: raw angle of the servo at position B

· realB: real angle of the servo at position B

Usage Example

// 设置舵机的标定点
// 样本1
#define SERVO_REAL_ANGLE_A 90 // 舵机真实角度
#define SERVO_RAW_ANGLE_A -86.2 // 舵机原始角度
// 样本2
#define SERVO_REAL_ANGLE_B -90 // 舵机真实角度
#define SERVO_RAW_ANGLE_B 91.9 // 舵机原始角度


// 输入舵机标定数据
uservo.calibration(
    SERVO_RAW_ANGLE_A,SERVO_REAL_ANGLE_A,\
    SERVO_RAW_ANGLE_B,SERVO_REAL_ANGLE_B);

Function Prototype

void FSUS_Servo::calibration(float kAngleReal2Raw, float bAngleReal2Raw);

Input Parameters

· kAngleReal2Raw: servo calibration data - scale coefficient between servo angle and position

· bAngleReal2Raw: servo calibration data - offset in angle and position conversion for the servo

13.2 API - `angleReal2Raw`

Convert the real angle of the servo to the raw angle of the servo.

Function Prototype

// 真实角度转化为原始角度
FSUS_SERVO_ANGLE_T FSUS_Servo::angleReal2Raw(FSUS_SERVO_ANGLE_T realAngle);

Input Parameters

· realAngle: real angle of the servo

Return Parameters

· rawAngle: raw angle of the servo

13.3 API - `angleRaw2Real`

Convert the raw angle of the servo to the real angle.

Function Prototype

// 原始角度转换为真实角度
FSUS_SERVO_ANGLE_T FSUS_Servo::angleRaw2Real(FSUS_SERVO_ANGLE_T rawAngle);

Input Parameters

· rawAngle: raw angle of the servo

· realAngle: real angle of the servo

13.4 Example Source Code

servo_calibration

/*
 * 测试舵机标定
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2023/03/13
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖


// 总线伺服舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 设置舵机的标定点
// 样本1
#define SERVO_REAL_ANGLE_A 90 // 舵机真实角度
#define SERVO_RAW_ANGLE_A -86.2 // 舵机原始角度
// 样本2
#define SERVO_REAL_ANGLE_B -90 // 舵机真实角度
#define SERVO_RAW_ANGLE_B 91.9 // 舵机原始角度

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200
#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 调试串口初始化
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
    DEBUG_SERIAL.println("Set Servo Angle");
    // 输入舵机标定数据
    uservo.calibration(
        SERVO_RAW_ANGLE_A,SERVO_REAL_ANGLE_A,\
        SERVO_RAW_ANGLE_B,SERVO_REAL_ANGLE_B);

    // 打印舵机标定数据
    DEBUG_SERIAL.println("kAngleReal2Raw = "+String(uservo.kAngleReal2Raw,2) + \
        "; bAngleReal2Raw = " + String(uservo.bAngleReal2Raw, 2));
}

void loop(){
    DEBUG_SERIAL.println("Set Angle = 90°");
    uservo.setAngle(90.0); // 设置舵机的角度
    uservo.wait();
    delay(2000);

    DEBUG_SERIAL.println("Set Angle = -90°");
    uservo.setAngle(-90);
    uservo.wait();
    delay(2000);
}

Log output:

Set Servo Angle

kAngleReal2Raw = -0.99; bAngleReal2Raw = 2.85

Set Angle = 90

Set Angle = -90

14. Servo Speed Setting

14.1 API - `setSpeed`

Function Prototype

void FSUS_Servo::setSpeed(FSUS_SERVO_SPEED_T speed)

Input Parameters

· speed: average speed of the servo, in °/s

Return Parameters

· <无>

15. Servo Data Read

15.1 API

Function Prototype

uint16_t FSUS_Servo::queryVoltage()// 查询舵机的电压(单位mV)

uint16_t FSUS_Servo::queryCurrent()// 查询舵机的电流(单位mA)

uint16_t FSUS_Servo::queryPower()// 查询舵机的功率(单位mW)

uint16_t FSUS_Servo::queryTemperature()// 查询舵机的温度(单位 ADC)

uint8_t FSUS_Servo::queryStatus()// 查询舵机状态

Input Parameters

· <无>

Return Parameters

Data of the servo

15.2 Example Source Code

servo_data_read.ino

/*
 * 舵机数据读取
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2024/08/14
 **/
#include "FashionStar_UartServoProtocol.h" // 总线伺服舵机通信协议
#include "FashionStar_UartServo.h"         // Fashion Star总线伺服舵机的依赖

// 配置
#define SERVO_ID 0      // 舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
#include <SoftwareSerial.h>
#define SOFT_SERIAL_RX 6
#define SOFT_SERIAL_TX 7
SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
#define DEBUG_SERIAL softSerial
#define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
#define DEBUG_SERIAL Serial
#define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
#define DEBUG_SERIAL Serial
#define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
#include <HardwareSerial.h>
//                      RX    TX
HardwareSerial Serial1(PA10, PA9);
// HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
HardwareSerial Serial3(PB11, PB10);
#define DEBUG_SERIAL Serial1
#define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE);       // 协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

// 读取数据
uint16_t voltage;     // 电压 mV
uint16_t current;     // 电流 mA
uint16_t power;       // 功率 mW
uint16_t temperature; // 温度 ADC
uint8_t status;       // 状态

void setup()
{

    protocol.init(); // 舵机通信协议初始化
    uservo.init();   // 总线伺服舵机初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE);
    DEBUG_SERIAL.println("Start To Test Servo Data Read \n"); // 打印日志

    // uservo.setAngle(-25.0,  1000, 200); // 设置舵机角度(限制功率)
}

void loop()
{
    // 读取电压数据
    voltage = uservo.queryVoltage();
    DEBUG_SERIAL.println("voltage: " + String((float)voltage, 1) + " mV");
    delay(100);
    // 读取电流数据
    current = uservo.queryCurrent();
    DEBUG_SERIAL.println("current: " + String((float)current, 1) + " mA");
    delay(100);
    // 读取功率数据
    power = uservo.queryPower();
    DEBUG_SERIAL.println("power: " + String((float)power, 1) + " mW");
    delay(100);
    // 读取温度数据，需要做ADC转℃
    temperature = uservo.queryTemperature();
    temperature = 1 / (log(temperature / (4096.0f - temperature)) / 3435.0f + 1 / (273.15 + 25)) - 273.15;
    DEBUG_SERIAL.println("temperature: " + String((float)temperature, 1) + " Celsius");

    // 读取工作状态数据
    /*
        BIT[0] - 执行指令置1，执行完成后清零。
        BIT[1] - 执行指令错误置1，在下次正确执行后清零。
        BIT[2] - 堵转错误置1，解除堵转后清零。
        BIT[3] - 电压过高置1，电压恢复正常后清零。
        BIT[4] - 电压过低置1，电压恢复正常后清零。
        BIT[5] - 电流错误置1，电流恢复正常后清零。
        BIT[6] - 功率错误置1，功率恢复正常后清零。
        BIT[7] - 温度错误置1，温度恢复正常后清零。
    */
    status = uservo.queryStatus();
    char binStr[9]; // 8位二进制字符串加上终止符
    for (int i = 7; i >= 0; i--) {
        binStr[7 - i] = (status & (1 << i)) ? '1' : '0';
    }
    binStr[8] = '\0'; // 字符串终止符
    DEBUG_SERIAL.print("WorkState: ");
    DEBUG_SERIAL.println(binStr);
    int bitValue = bitRead(status, 3);
    //判断电压错误标志是否触发
    if (bitValue)
    {
        DEBUG_SERIAL.println("voltage_high");
    }
    bitValue = bitRead(status, 4);
    if (bitValue)
    {
        DEBUG_SERIAL.println("voltage_low");
    }
    delay(100);

    delay(1000);
}

16. Origin Setting

Notes:

Only applies to brushless magnetic encoder servo
This API must be used when torque is released.

16.1 API - `SetOriginPoint`

Function Prototype

void FSUS_Servo::SetOriginPoint();

Input Parameters

<无>

Return Parameters

<无>

16.2 Example Source Code

servo_set_origin_point.ino

/*
 * 设置舵机原点
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2024/08/14
 **/
#include "FashionStar_UartServoProtocol.h" // 总线伺服舵机通信协议
#include "FashionStar_UartServo.h"         // Fashion Star总线伺服舵机的依赖

// 总线伺服舵机配置
#define SERVO_ID 0      // 舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
#include <SoftwareSerial.h>
#define SOFT_SERIAL_RX 6
#define SOFT_SERIAL_TX 7
SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
#define DEBUG_SERIAL softSerial
#define DEBUG_SERIAL_BAUDRATE 4800

#elif defined(ARDUINO_AVR_MEGA2560)
#define DEBUG_SERIAL Serial
#define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
#define DEBUG_SERIAL Serial
#define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
#include <HardwareSerial.h>
//                      RX    TX
HardwareSerial Serial1(PA10, PA9);
// HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
HardwareSerial Serial3(PB11, PB10);
#define DEBUG_SERIAL Serial1
#define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE);       // 协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

void setup()
{
    protocol.init(); // 舵机通信协议初始化
    uservo.init();   // 总线伺服舵机初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE);

    uservo.setTorque(0);
    uservo.queryRawAngle();
    // 输出查询信息
    DEBUG_SERIAL.println("Before Set Origin Point: Servo Angle: " + String(uservo.curRawAngle, 1) + " deg");
    uservo.SetOriginPoint();
    delay(1000);
    uservo.queryRawAngle();
    DEBUG_SERIAL.println("After Set Origin Point: Servo Angle: " + String(uservo.curRawAngle, 1) + " deg");
}

void loop()
{
    uservo.queryRawAngle();
    String message = "Status Code: " + String(uservo.protocol->responsePack.recv_status, DEC) + " servo #" + String(uservo.servoId, DEC) + " , Current Angle = " + String(uservo.curRawAngle, 1) + " deg";
    DEBUG_SERIAL.println(message);
    delay(1000);
}

17. Clear Current Turn Count

Notes:

Only applies to magnetic encoder servo
This API must be used when torque is released.

17.1 API - `ResetMultiTurnAngle`

Function Prototype

void FSUS_Servo::ResetMultiTurnAngle();

Input Parameters

<无>

Return Parameters

<无>

17.2 Example Source Code

servo_reset_multiturn_angle.ino

/*
 *
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2024/12/17
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖


// 串口总线舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 115200


    #elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

uint32_t interval;  // 运行周期 单位ms
uint16_t t_acc;     // 加速时间 单位ms
uint16_t t_dec;     // 减速时间 单位ms
float velocity;         // 目标转速 单位°/s

/* 等待并报告当前的角度*/
void waitAndReport(){          // 等待舵机旋转到目标角度
    DEBUG_SERIAL.println("Real Angle = " + String(uservo.curRawAngle, 1) + " Target Angle = "+String(uservo.targetRawAngle, 1));
    delay(5000); // 暂停2s
}

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 打印例程信息
   DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
   DEBUG_SERIAL.println("Set Servo Angle");
}

void loop(){

   uservo.setRawAngleMTurn(1000.0);  // 设置舵机的角度
   delay(7000);
   uservo.queryRawAngleMTurn();      //读取角度
    // 日志输出
    String message = "Status Code: " + String(uservo.protocol->responsePack.recv_status, DEC) + " servo #"+String(uservo.servoId, DEC) + " , Current Angle = "+String(uservo.curRawAngle, 1)+" deg";
    DEBUG_SERIAL.println(message);
    // 等待1s
    delay(1000);
    uservo.StopOnControlUnloading(); //停止舵机（清除圈数需要在舵机停止状态）
    delay(10);
    uservo.ResetMultiTurnAngle();   //清除当前圈数
    delay(10);
    uservo.queryRawAngleMTurn();    //读取角度
    message = "Status Code: " + String(uservo.protocol->responsePack.recv_status, DEC) + " servo #"+String(uservo.servoId, DEC) + " , Current Angle = "+String(uservo.curRawAngle, 1)+" deg";
    DEBUG_SERIAL.println(message);
    // 等待1s
    delay(1000);

    uservo.setRawAngleMTurn(-1000.0);  // 设置舵机的角度
    delay(7000);
    uservo.queryRawAngleMTurn();
    // 日志输出
    message = "Status Code: " + String(uservo.protocol->responsePack.recv_status, DEC) + " servo #"+String(uservo.servoId, DEC) + " , Current Angle = "+String(uservo.curRawAngle, 1)+" deg";
    DEBUG_SERIAL.println(message);
    // 等待1s
    delay(1000);
    uservo.StopOnControlUnloading();
    delay(10);
    uservo.ResetMultiTurnAngle();
    delay(10);
    uservo.queryRawAngleMTurn();
    message = "Status Code: " + String(uservo.protocol->responsePack.recv_status, DEC) + " servo #"+String(uservo.servoId, DEC) + " , Current Angle = "+String(uservo.curRawAngle, 1)+" deg";
    DEBUG_SERIAL.println(message);
    // 等待1s
    delay(1000);

}

18. Async Commands

Notes:

Only applies to brushless magnetic encoder Servo V316 and later versions.

18.1 API

Function Prototype

void FSUS_Servo::BeginAsync();  //异步写入异步指令

void FSUS_Servo::EndAsync(uint8_t cancel);  // 异步执行指令

Input Parameters

· cancel: 0 execute; 1 cancel

Return Parameters

<无>

18.2 Example Source Code

servo_async.ino

/*
 * 舵机异步命令
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2024/12/17
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖


// 串口总线舵机配置参数
#define SERVO_ID 3 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 115200


    #elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

/* 等待并报告当前的角度*/
void waitAndReport(){
    uservo.wait();          // 等待舵机旋转到目标角度
    DEBUG_SERIAL.println("Real Angle = " + String(uservo.curRawAngle, 1) + " Target Angle = "+String(uservo.targetRawAngle, 1));
    delay(2000); // 暂停2s
}

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 打印例程信息
   DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
   DEBUG_SERIAL.println("Set Servo Angle");
}

void loop(){

    float angle;
    uservo.setRawAngle(0.0);    // 设置舵机的角度
    uservo.BeginAsync();        //异步写入指令
    delay(1000);
    uservo.setRawAngle(90.0);   // 存入设置舵机角度
    /*支持存入命令：
     设置舵机原始角度
     设置舵机的原始角度(指定周期)
     设定舵机的原始角度(指定转速)
     设定舵机的原始角度(多圈)
     设定舵机的原始角度(多圈+指定周期)
     设定舵机的原始角度(多圈+指定转速)
    */
    delay(1000);
    uservo.EndAsync(0);         //异步执行，执行存入的指令
    delay(1000);

    uservo.BeginAsync();        //异步写入指令
    delay(1000);
    uservo.setRawAngle(180.0);   // 存入设置舵机角度
    delay(1000);
    uservo.EndAsync(1);         // 取消 异步执行
    delay(1000);

}

19. Data Monitoring

Notes:

Only applies to brushless magnetic encoder Servo V316 and later versions.

19.1 API

Function Prototype

ServoMonitorData FSUS_Servo::ServoMonitor();

Input Parameters

<无>

Return Parameters

Data of the servo

19.2 Example Source Code

servo_monitor.ino

/*
 * 舵机数据监控
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2024/12/17
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖


// 串口总线舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 115200


    #elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机


uint16_t Voltage;
uint16_t Current;
uint16_t Power;
uint16_t Temperature;
uint8_t Status;
float Angle;
uint8_t Turns;

/* 等待并报告当前的角度*/
void waitAndReport(){
    uservo.wait();          // 等待舵机旋转到目标角度
    DEBUG_SERIAL.println("Real Angle = " + String(uservo.curRawAngle, 1) + " Target Angle = "+String(uservo.targetRawAngle, 1));
    delay(2000); // 暂停2s
}

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 打印例程信息
   DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
   DEBUG_SERIAL.println("Set Servo Angle");
}

void loop(){

ServoMonitorData data = uservo.ServoMonitor();

    // 打印舵机监控数据
    if (data.isValid) {
        DEBUG_SERIAL.println("Servo Monitor Data (Valid):");
        DEBUG_SERIAL.print("Servo ID: ");
        DEBUG_SERIAL.println(data.servoId);
        DEBUG_SERIAL.print("Voltage: ");
        DEBUG_SERIAL.println(data.voltage);
        DEBUG_SERIAL.print("Current: ");
        DEBUG_SERIAL.println(data.current);
        DEBUG_SERIAL.print("Power: ");
        DEBUG_SERIAL.println(data.power);
        DEBUG_SERIAL.print("Temperature: ");
        DEBUG_SERIAL.println(data.temperature);
        DEBUG_SERIAL.print("Status: ");
        DEBUG_SERIAL.println(data.status);
        DEBUG_SERIAL.print("Angle: ");
        DEBUG_SERIAL.println(data.angle);
        DEBUG_SERIAL.print("Turns: ");
        DEBUG_SERIAL.println(data.turns);
        delay(2000);
    } else {
        DEBUG_SERIAL.println("Failed to receive valid servo data.");
        delay(2000);
    }
}

Log output:

Servo Monitor Data (Valid):
Servo ID: 0
Voltage: 12051.00
Current: 30.00
Power: 361.00
Temperature: 2015.00
Status: 0
Angle: 4999.90
Turns: 13.00

20. Stop Command

Notes:

Only applies to brushless magnetic encoder Servo V316 and later versions.

20.1 API

Function Prototype

void StopOnControlMode(uint8_t method, uint16_t power);// 停止指令

void StopOnControlUnloading();// 停止指令-卸力（失锁）

void StopOnControlKeep(uint16_t power); // 停止指令-锁力

void StopOnControlDammping(uint16_t power);// 停止指令-阻尼

Input Parameters

· method: stop command execution mode

0x10 - release torque after stopping (torque released)

0x11 - hold torque after stopping

0x12 - enter damping state after stopping

· power: power after torque switch

Unit: mW. If it is 0 or greater than the power protection value, the power protection value is used.

Return Parameters

<无>

20.2 Example Source Code

servo_stop.ino

/*
 * 设置舵机的角度后发送停止指令
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2024/12/17
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖


// 串口总线舵机配置参数
#define SERVO_ID 1 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

uint32_t interval;  // 运行周期 单位ms
uint16_t t_acc;     // 加速时间 单位ms
uint16_t t_dec;     // 减速时间 单位ms
float velocity;         // 目标转速 单位°/s

/* 等待并报告当前的角度*/
void waitAndReport(){
    uservo.wait();          // 等待舵机旋转到目标角度
    DEBUG_SERIAL.println("Real Angle = " + String(uservo.curRawAngle, 1) + " Target Angle = "+String(uservo.targetRawAngle, 1));
    delay(2000); // 暂停2s
}

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
    DEBUG_SERIAL.println("Set Servo Angle");
}

void loop(){

    DEBUG_SERIAL.println("Set Angle = 10000° ,StopOnControlUnloading\r\n");
    interval = 500;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleMTurnByInterval(10000, interval, t_acc, t_dec, 0);
    delay(2000); // 暂停2s
    uservo.StopOnControlUnloading();//停止失锁，可掰动
    delay(5000);

    DEBUG_SERIAL.println("Set Angle = -10000° ,StopOnControlKeep\r\n");
    interval = 500;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleMTurnByInterval(-10000, interval, t_acc, t_dec, 0);
    delay(2000); // 暂停2s
    uservo.StopOnControlKeep(100);//停止锁止，无法掰动
    delay(5000);

    DEBUG_SERIAL.println("Set Angle = 10000° ,StopOnControlKeep\r\n");
    interval = 500;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleMTurnByInterval(10000, interval, t_acc, t_dec, 0);
    delay(2000); // 暂停2s
    uservo.StopOnControlDammping(500);//停止阻尼，可掰动（有阻尼感）
    delay(5000);

    DEBUG_SERIAL.println("Set Angle = -10000° ,StopOnControlKeep\r\n");
    interval = 500;
    t_acc = 100;
    t_dec = 100;
    uservo.setRawAngleMTurnByInterval(-10000, interval, t_acc, t_dec, 0);
    delay(6000); // 暂停2s

}

21. Sync Commands

Notes:

Only applies to brushless magnetic encoder Servo V316 and later versions.
The Arduino UNO board has only 2 KB RAM and currently supports synchronization of only 12 servo.

21.1 API

Function Prototype

void FSUS_Servo::SyncCommand(uint8_t servocount, uint8_t syncmode, FSUS_sync_servo servoSync[]);    //同步控制

void FSUS_Servo::SyncMonitorCommand(uint8_t servocount, FSUS_sync_servo servoSync[],ServoMonitorData* data);    // 同步数据监控

Input Parameters

<无>

Return Parameters

Data of the servo

21.2 Example Source Code

servo_sync_command.ino

/*
 * 同步控制/同步监控
 * 提示: 拓展板上电之后, 记得按下Arduino的RESET按键
 * --------------------------
 * 作者: 深圳市华馨京科技有限公司
 * 网站：https://fashionrobo.com/
 * 更新时间: 2024/12/30
 */

#include "FashionStar_UartServoProtocol.h"
#include "FashionStar_UartServo.h" // Fashion Star总线伺服舵机的依赖

// 串口总线舵机配置参数
#define SERVO_ID 0 //舵机ID号
#define BAUDRATE 115200 // 波特率

// 调试串口的配置
#if defined(ARDUINO_AVR_UNO)
    #include <SoftwareSerial.h>
    #define SOFT_SERIAL_RX 6
    #define SOFT_SERIAL_TX 7
    SoftwareSerial softSerial(SOFT_SERIAL_RX, SOFT_SERIAL_TX); // 创建软串口
    #define DEBUG_SERIAL softSerial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_AVR_MEGA2560)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_ESP32)
    #define DEBUG_SERIAL Serial
    #define DEBUG_SERIAL_BAUDRATE 115200

#elif defined(ARDUINO_ARCH_STM32)
    #include <HardwareSerial.h>
    //                      RX    TX
    HardwareSerial Serial1(PA10, PA9);
    //HardwareSerial Serial2(PA3, PA2); //这里串口2不需要定义
    HardwareSerial Serial3(PB11, PB10);
    #define DEBUG_SERIAL Serial1
    #define DEBUG_SERIAL_BAUDRATE (uint32_t)115200

#endif

FSUS_Protocol protocol(BAUDRATE); //协议
FSUS_Servo uservo(SERVO_ID, &protocol); // 创建舵机

FSUS_sync_servo servoSyncArray[18]; //

void setup(){
    protocol.init(); // 通信协议初始化
    uservo.init(); //舵机角度初始化
    // 打印例程信息
    DEBUG_SERIAL.begin(DEBUG_SERIAL_BAUDRATE); // 初始化软串口的波特率
}
int mode;
int count;
ServoMonitorData servodata[1];
void loop(){
    mode = 1;
    /*  mode 1:单圈角度控制
        mode 2:单圈角度控制-指定时间
        mode 3:单圈角度控制-指定速度
        mode 4:多圈角度控制
        mode 5:多圈角度控制-指定时间
        mode 5:多圈角度控制-指定速度
        注意：Arduino UNO板子的RAM只有2k，目前只支持12个舵机同步
    */
    count = 11;
 for (int i = 0; i < count; i++) {
    servoSyncArray[i].servoId = i;
    servoSyncArray[i].angle = 90;
    servoSyncArray[i].interval = 1000;
    servoSyncArray[i].interval_multiturn = 1000;
    servoSyncArray[i].velocity = 360;
    servoSyncArray[i].t_acc = 100;
    servoSyncArray[i].t_dec = 100;
    servoSyncArray[i].power = 0;
}
    uservo.SyncCommand(count,mode, servoSyncArray);
    delay(2000);

    uservo.SyncMonitorCommand(count, servoSyncArray,servodata);
    delay(2000);
        for (int i = 0; i < count; i++) {
        DEBUG_SERIAL.println("id:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].servoId);

        DEBUG_SERIAL.println("voltage:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].voltage);

        DEBUG_SERIAL.println("current:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].current);

        DEBUG_SERIAL.println("power:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].power);

        DEBUG_SERIAL.println("temperature:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].temperature);

        DEBUG_SERIAL.println("status:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].status);

        DEBUG_SERIAL.println("angle:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].angle);

        DEBUG_SERIAL.println("turns:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].turns);
        delay(1000);
    }
    delay(2000);

    mode = 1;
    count = 11;
 for (int i = 0; i < count; i++) {
    servoSyncArray[i].servoId = i;
    servoSyncArray[i].angle = 0;
    servoSyncArray[i].interval = 1000;
    servoSyncArray[i].interval_multiturn = 1000;
    servoSyncArray[i].velocity = 360;
    servoSyncArray[i].t_acc = 100;
    servoSyncArray[i].t_dec = 100;
    servoSyncArray[i].power = 0;
}
    uservo.SyncCommand(count,mode, servoSyncArray);
    delay(2000);
    uservo.SyncMonitorCommand(count,servoSyncArray,servodata);
    delay(2000);
        for (int i = 0; i < count; i++) {
        DEBUG_SERIAL.println("id:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].servoId);

        DEBUG_SERIAL.println("voltage:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].voltage);

        DEBUG_SERIAL.println("current:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].current);

        DEBUG_SERIAL.println("power:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].power);

        DEBUG_SERIAL.println("temperature:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].temperature);

        DEBUG_SERIAL.println("status:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].status);

        DEBUG_SERIAL.println("angle:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].angle);

        DEBUG_SERIAL.println("turns:");  // 打印每个 syncmonitorData
        DEBUG_SERIAL.println(servodata[i].turns);
        delay(1000);
    }
    delay(2000);

}

Log output:

id:
0
voltage:
11427.00
current:
30.00
power:
342.00
temperature:
2035.00
status:
0
angle:
0.10
turns:
0.00

id:
1
voltage:
11654.00
current:
30.00
power:
349.00
temperature:
2053.00
status:
0
angle:
0.10
turns:
0.00

id:
2
voltage:
11553.00
current:
30.00
power:
346.00
temperature:
2108.00
status:
0
angle:
0.10
turns:
0.00

id:
3
voltage:
11543.00
current:
30.00
power:
346.00
temperature:
2041.00
status:
0
angle:
0.10
turns:
0.00

id:
4
voltage:
11572.00
current:
30.00
power:
347.00
temperature:
2043.00
status:
0
angle:
0.10
turns:
0.00

id:
5
voltage:
11736.00
current:
30.00
power:
352.00
temperature:
2034.00
status:
0
angle:
0.10
turns:
0.00

id:
6
voltage:
11649.00
current:
30.00
power:
349.00
temperature:
2126.00
status:
0
angle:
0.10
turns:
0.00

id:
7
voltage:
11703.00
current:
30.00
power:
351.00
temperature:
2121.00
status:
0
angle:
0.10
turns:
0.00

id:
8
voltage:
11674.00
current:
30.00
power:
350.00
temperature:
2041.00
status:
0
angle:
0.10
turns:
0.00

id:
9
voltage:
11640.00
current:
30.00
power:
349.00
temperature:
2038.00
status:
0
angle:
0.10
turns:
0.00

id:
10
voltage:
11514.00
current:
30.00
power:
345.00
temperature:
2031.00
status:
0
angle:
0.10
turns:
0.00

id:
11
voltage:
11659.00
current:
30.00
power:
349.00
temperature:
2048.00
status:
0
angle:
0.10
turns:
0.00

Bus Servo SDK User Manual (Arduino Uno)

1. Install the Arduino Library for Bus Servo

2. Hardware Connection Instructions

2.1 Physical Wiring Diagram Between UNO and UC01

2.2 UNO and UC01 Wiring Table

2.3 Notes When Uploading Code

3. Software Serial Port Log Output

4. Creating and Initializing the Servo Object

5. Servo Communication Check

5.1 API - ping

5.2 Example Source Code

6. Servo Damping Mode

6.1 API - setDamping

6.2 Example Source Code

7. Servo Angle Query

7.1 API - queryAngle

7.2 Example Source Code

8. Servo Wheel Mode (Deprecated in Version 316 and Later)

8.1 API - wheelStop

8.2 API - wheelRun

8.3 API - wheelRunNTime

8.4 API - wheelRunNCircle

8.5 Example Source Code

9. Single-Turn Angle Control

9.1 API - setAngle

9.2 API - setRawAngleByInterval

9.3 API - setRawAngleByVelocity

9.4 API - isStop

9.5 API - setRange

9.6 Example Source Code

10. Servo Blocking Wait

10.1 API - wait

10.2 Example Source Code

11. Multi-Turn Angle Control

11.1 API - setRawAngleMTurn

11.2 API - setRawAngleByInterval

11.3 API - setRawAngleMTurnByVelocity

11.4 Example Source Code

12. Servo Torque Switch

12.1 API - setTorque

12.2 Example Source Code

13. Servo Calibration

13.1 API - calibration

13.2 API - angleReal2Raw

13.3 API - angleRaw2Real

13.4 Example Source Code

14. Servo Speed Setting

14.1 API - setSpeed

15. Servo Data Read

15.1 API

15.2 Example Source Code

16. Origin Setting

16.1 API - SetOriginPoint

16.2 Example Source Code

17. Clear Current Turn Count

17.1 API - ResetMultiTurnAngle

17.2 Example Source Code

18. Async Commands

18.1 API

18.2 Example Source Code

19. Data Monitoring

19.1 API

19.2 Example Source Code

20. Stop Command

20.1 API

20.2 Example Source Code

21. Sync Commands

21.1 API

21.2 Example Source Code

5.1 API - `ping`

6.1 API - `setDamping`

7.1 API - `queryAngle`

8.1 API - `wheelStop`

8.2 API - `wheelRun`

8.3 API - `wheelRunNTime`

8.4 API - `wheelRunNCircle`

9.1 API - `setAngle`

9.2 API - `setRawAngleByInterval`

9.3 API - `setRawAngleByVelocity`

9.4 API - `isStop`

9.5 API - `setRange`

10.1 API - `wait`

11.1 API - `setRawAngleMTurn`

11.2 API - `setRawAngleByInterval`

11.3 API - `setRawAngleMTurnByVelocity`

12.1 API - `setTorque`

13.1 API - `calibration`

13.2 API - `angleReal2Raw`

13.3 API - `angleRaw2Real`

14.1 API - `setSpeed`

16.1 API - `SetOriginPoint`

17.1 API - `ResetMultiTurnAngle`
