Wiring Sequence for Bus Servo
1. Standard Wiring Sequence

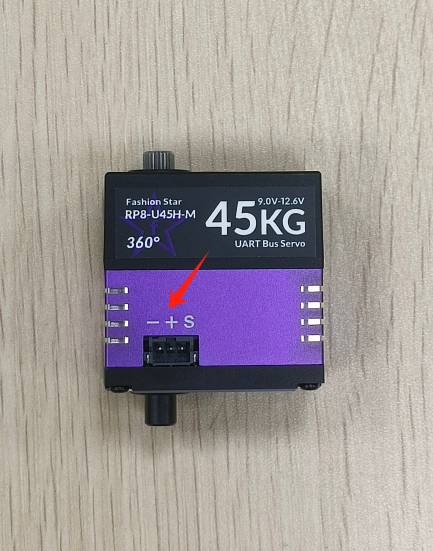

From left to right, the servo interface is - + S with the connector notch facing upward.

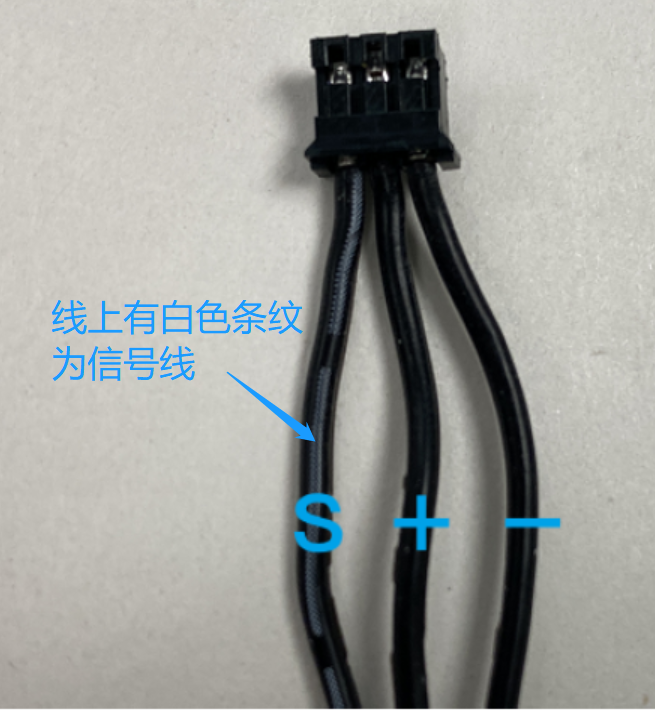

On the cable, the wire with the white stripe is the signal wire (S), the middle wire is positive (+), and the other side is negative (-).
PS: Except for the small 15 kg servo, the full servo series uses the same wiring sequence design.
2. Wiring Sequence for the Small 15 kg Servo

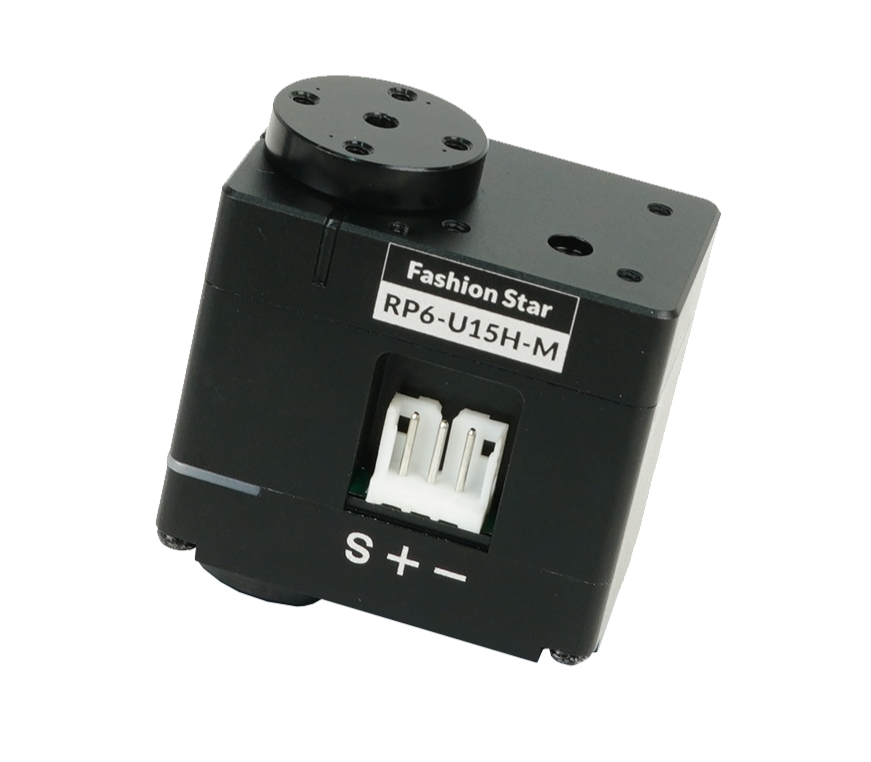

From left to right, the servo interface is S + - with the connector notch facing upward.
