Product Selection | Model Naming Rules

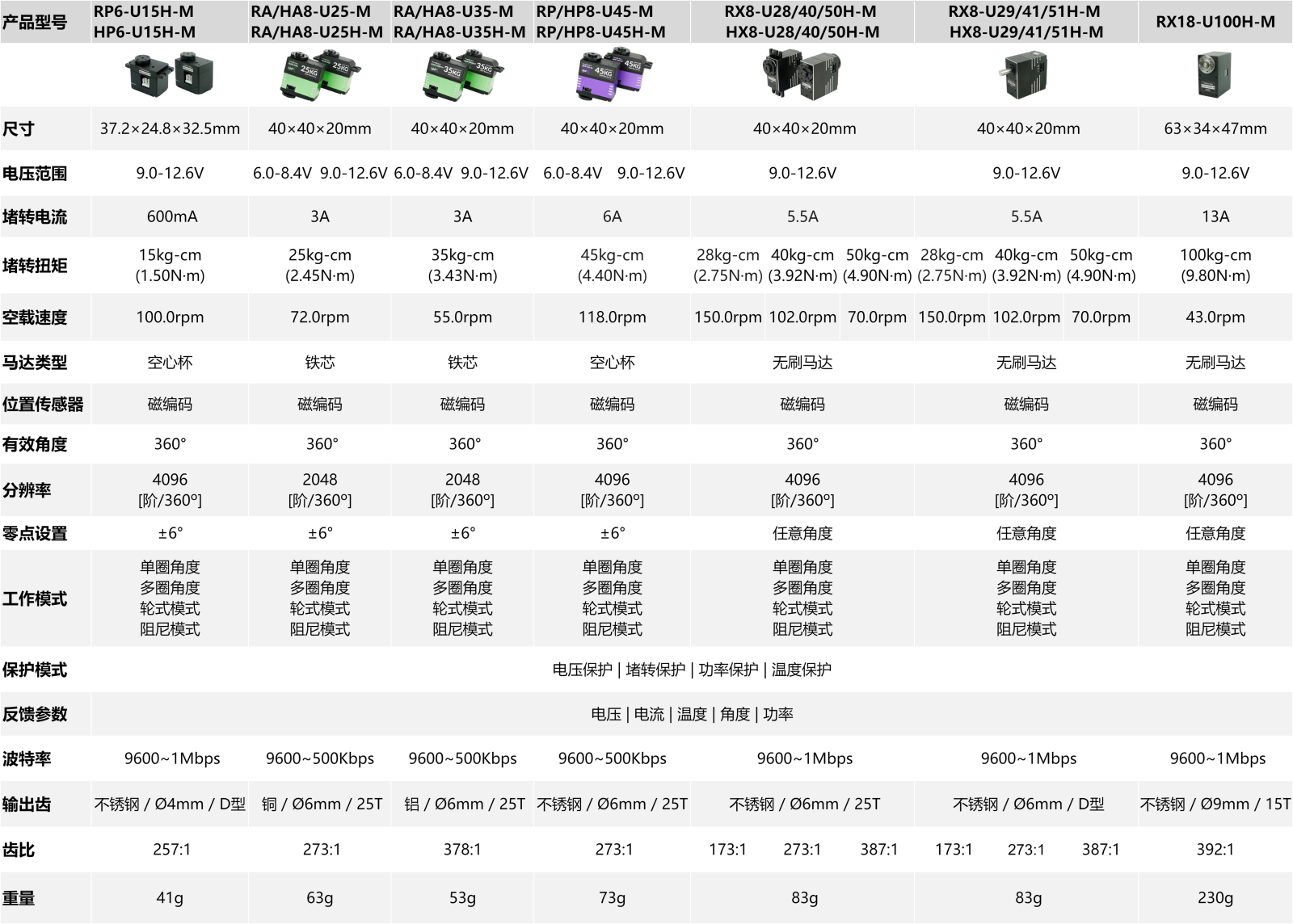

1. Product Selection Table

This selection table provides detailed product selection references. Pay attention to the following points when using it:

Protocol compatibility: The communication protocol remains consistent across the full product series, so different models can be mixed and used together.

Mechanical compatibility: The 25-50 kg series products share consistent exterior dimensions and mounting hole positions, allowing seamless replacement and upgrades.

Torque description: The marked torque parameter refers to static torque, which is the maximum force the product can support while stationary. During dynamic motion, the actual load torque is usually 30%-40% of the static torque. In design and application, select the product reasonably based on this ratio to ensure safe and stable operation under dynamic conditions.

Power supply selection: Select a power supply with sufficient power according to the voltage and stall current of the selected product. This prevents the product from entering protection due to insufficient power.

Special requirements: If you have special functional requirements, contact technical support for further consultation and customization services.

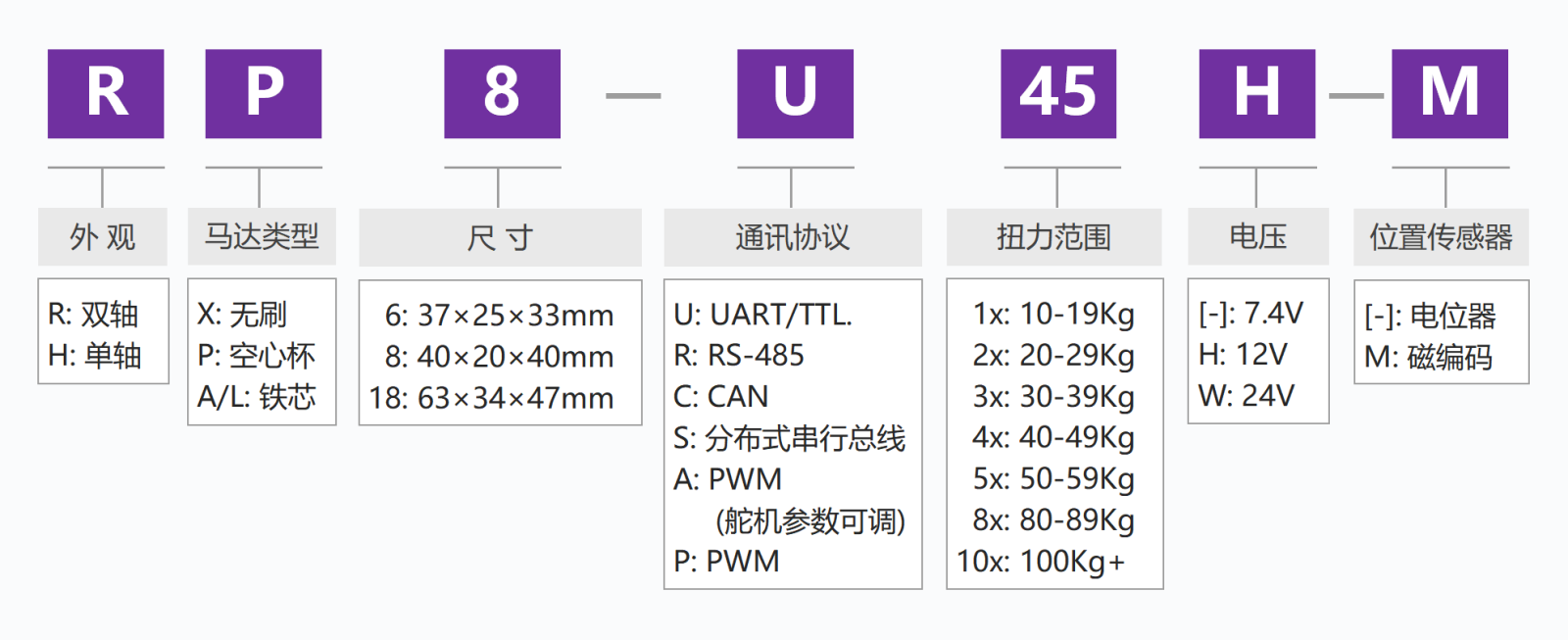

2. Model Naming Rules

Model example: RP8-U45H-M

• Dual-shaft appearance | Coreless motor | 40 x 20 x 40 mm | UART communication protocol | 45 kg-cm static torque | 9.0-12.6 V | Magnetic encoder
